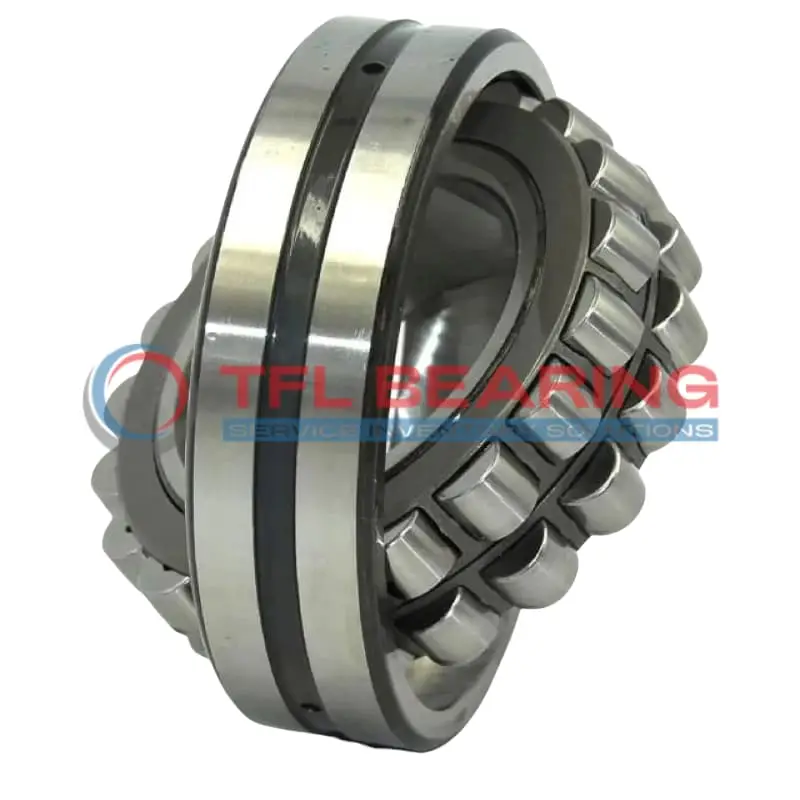

23048 CC/C08W33 Double Row Spherical Roller Bearing

23048 CC/C08W33 Double Row Spherical Roller Bearing

The 23048 CC/C08W33 is a double-row spherical roller bearing with a 240mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 301244 lbf and operates smoothly at speeds up to 1900 RPM.

Its spherical rollers and open design allow for slight misalignment, while the steel cage ensures durability. The bearing includes lubrication grooves and holes for easy maintenance.

Suitable for heavy-duty applications like industrial gearboxes or mining equipment, it performs well in temperatures from -30°C to 200°C.

Weighing 32.5kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Interchangeable with SKF bearings, it offers a practical solution for replacements or upgrades. Ideal for machinery requiring high radial load capacity and alignment flexibility.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23048 CC/C08W33
  • Brand TFL
  • Interchangeable SKF
  • Size 240 x 360 x 92 mm
  • Bore Dia 240 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 360 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 92 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 271 mm
  • Shoulder/Recess Dia Of Outer Ring 326 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 301244 lbf
  • Static Radial Load 467603 lbf
  • Max Speed 1900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 32.5 kg
  • Price （US$） US$769.69

Features

Performance Features of 23048 CC/C08W33 Bearing

23048 CC/C08W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 301244 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining performance under varying conditions.
With a maximum speed of 1900 rpm, it delivers both durability and efficiency.

23048 CC/C08W33 Bearing operates in temperatures from -30° to 200°C, suitable for diverse environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 23048 CC/C08W33 Bearing
23048 CC/C08W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding environments.

Where Is 23048 CC/C08W33 Bearing Used?
In mining equipment, 23048 CC/C08W33 Bearing supports large rotating components, thanks to its robust chrome steel construction. Its high dynamic load capacity makes it suitable for continuous operation under tough conditions.

Built for Heavy-Duty Use: 23048 CC/C08W33 Bearing
For wind turbines, 23048 CC/C08W33 Bearing provides reliable performance in gearboxes and yaw systems. The wide temperature range ensures stability even in extreme weather conditions.

Automotive vs Aerospace: Applications of 23048 CC/C08W33 Bearing
In industrial gearboxes, 23048 CC/C08W33 Bearing excels due to its high load capacity and durability. While not typically used in aerospace, it’s a staple in heavy-duty automotive applications like drivetrains.

Key Fields for 23048 CC/C08W33 Bearing
23048 CC/C08W33 Bearing is ideal for paper mills, where its resistance to contamination and high speeds keeps production lines running. The steel cage adds extra durability in dusty or humid environments.
