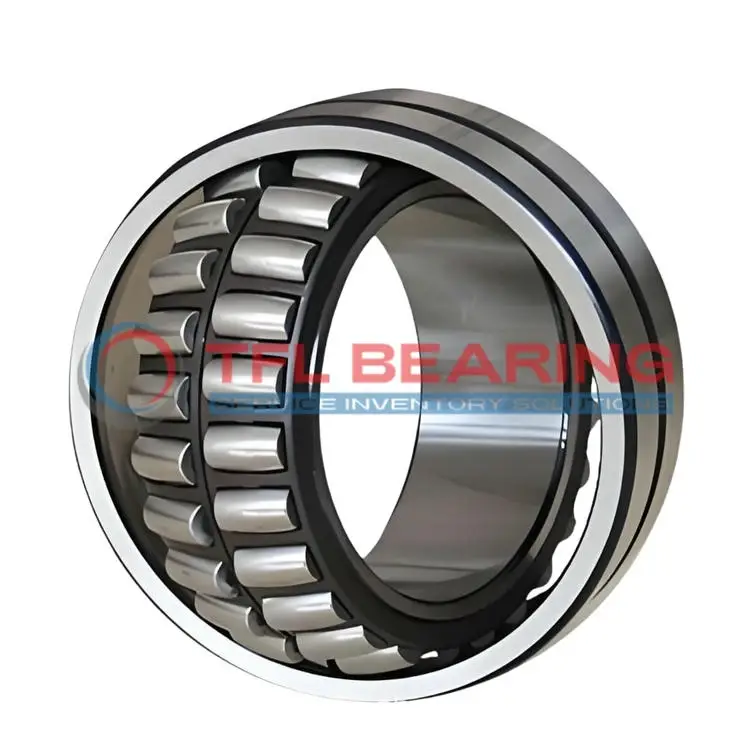

23032 CC/W33 Double Row Spherical Roller Bearing

23032 CC/W33 Double Row Spherical Roller Bearing

The 23032 CC/W33 is a double-row spherical roller bearing with a 160mm bore and 240mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 138033 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes simplify maintenance. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 9.25kg, it’s built for strength and longevity. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23032 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 160 x 240 x 60 mm
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 60 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 180 mm
  • Shoulder/Recess Dia Of Outer Ring 217 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 138033 lbf
  • Static Radial Load 197832 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 9.25 kg
  • Price （US$） US$243.54

Features

Performance Features of 23032 CC/W33 Bearing

23032 CC/W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 138033 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 3000 rpm, it delivers reliable performance in demanding environments.

23032 CC/W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 23032 CC/W33 Bearing
23032 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction also compensates for minor misalignments, reducing wear in demanding environments.

Where Is 23032 CC/W33 Bearing Used?
You’ll often spot 23032 CC/W33 Bearing in mining equipment, where its high dynamic load capacity keeps operations running smoothly. The steel cage and chrome steel rollers ensure durability even in dusty or high-temperature conditions.

Built for Heavy-Duty Use: 23032 CC/W33 Bearing
23032 CC/W33 Bearing shines in paper mill machinery, supporting heavy rollers with consistent performance. Its lubrication groove design simplifies maintenance, making it a reliable choice for continuous operation.

Automotive vs Aerospace: Applications of 23032 CC/W33 Bearing
In automotive applications, 23032 CC/W33 Bearing supports drivetrain components, while in aerospace, it’s trusted for auxiliary systems requiring precision. The wide temperature range ensures reliability across diverse conditions.

Essential Roles of 23032 CC/W33 Bearing
23032 CC/W33 Bearing is vital in wind turbines, where its ability to handle combined loads and misalignment ensures long service life. The metric sizing also makes it easy to integrate into global equipment designs.
