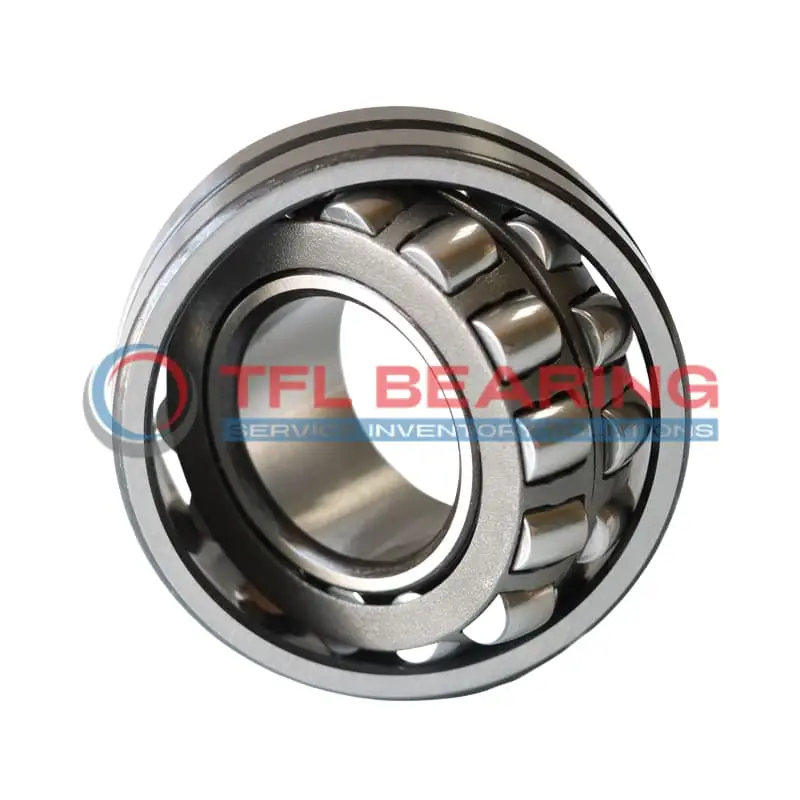

23028 CC/C4W33 Double Row Spherical Roller Bearing

23028 CC/C4W33 Double Row Spherical Roller Bearing

The 23028 CC/C4W33 is a double-row spherical roller bearing with a 140mm bore and 210mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 109032 lbf and operates smoothly at speeds up to 3400 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 6.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 23028 CC/C4W33
  • Brand TFL
  • Interchangeable SKF
  • Size 140 x 210 x 53 mm
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 210 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 53 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 158 mm
  • Shoulder/Recess Dia Of Outer Ring 190 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 109032 lbf
  • Static Radial Load 15287 lbf
  • Max Speed 3400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.3 kg
  • Price （US$） US$215.78

Features

Performance Features of 23028 CC/C4W33 Bearing

23028 CC/C4W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 109032 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 3400 rpm, it delivers reliable performance in various industrial settings.

23028 CC/C4W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C4 radial clearance provides flexibility for different operational requirements.

Application

Industrial Uses of 23028 CC/C4W33 Bearing
23028 CC/C4W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, making it reliable in rugged environments.

Where Is 23028 CC/C4W33 Bearing Used?
In mining equipment, 23028 CC/C4W33 Bearing supports high-load applications such as conveyor pulleys and gearboxes. Its C4 radial clearance ensures smooth operation even under thermal expansion.

Built for Heavy-Duty Use: 23028 CC/C4W33 Bearing
23028 CC/C4W33 Bearing excels in steel mills, where its chrome steel rollers withstand extreme temperatures and heavy loads. The open design allows for easy lubrication, extending service life.

Automotive vs Aerospace: Applications of 23028 CC/C4W33 Bearing
In automotive drivetrains, 23028 CC/C4W33 Bearing manages combined loads in differential systems. For aerospace, its high-speed capability makes it suitable for auxiliary power units.

Essential Roles of 23028 CC/C4W33 Bearing
23028 CC/C4W33 Bearing is vital in wind turbines, where its durability and load capacity ensure consistent performance. The steel cage enhances stability during prolonged operation.
