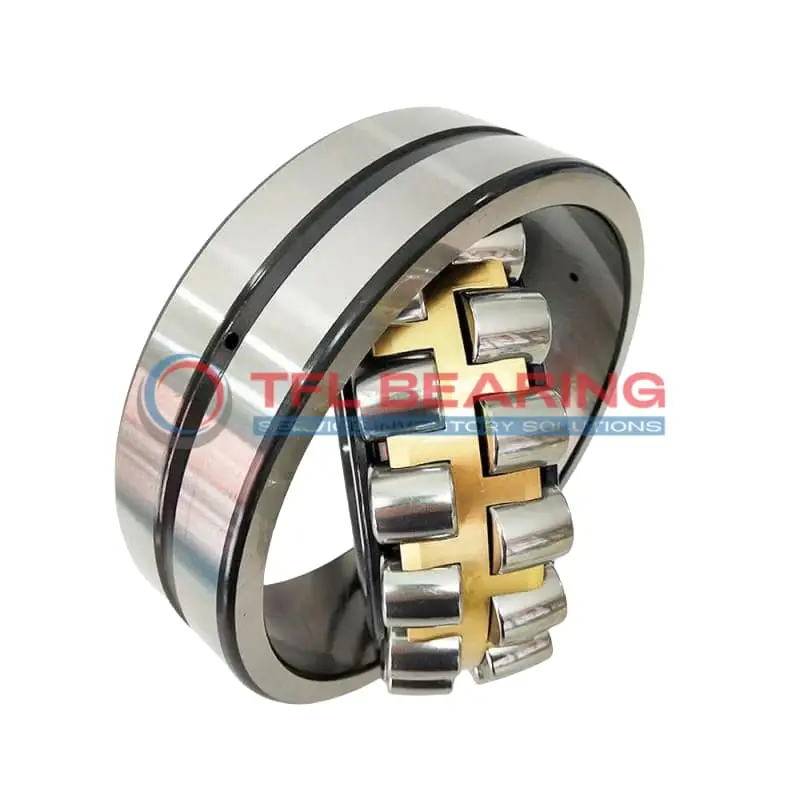

230/560 CA/C08W509 Double Row Spherical Roller Bearing

230/560 CA/C08W509 Double Row Spherical Roller Bearing

The 230/560 CA/C08W509 is a double-row spherical roller bearing with a 560mm bore and 820mm outer diameter, built from tough chrome steel for heavy-duty use. It handles combined loads up to 1,299,171 lbf and runs smoothly at speeds up to 750 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a 22.3mm lubrication groove and 12mm holes for efficient maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery like crushers or large gearboxes where high radial loads are common.

Weighing 350kg, it’s built for stability and long service life. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 230/560 CA/C08W509
  • Brand TFL
  • Interchangeable SKF
  • Size 560 x 820 x 195 mm
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 820 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 195 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 646 mm
  • Shoulder/Recess Dia Of Outer Ring 746 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1299171 lbf
  • Static Radial Load 2293051 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 350 kg
  • Price （US$） US$10,152.14

Features

Performance Features of 230/560 CA/C08W509 Bearing

230/560 CA/C08W509 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 1,299,171 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and wear.
With a maximum speed of 750 rpm, it delivers reliable performance under demanding conditions.

230/560 CA/C08W509 Bearing operates in temperatures from -30° to 200°C, ensuring versatility.
Its double-row spherical design accommodates misalignment, enhancing operational stability.

The lubrication groove and hole design in 230/560 CA/C08W509 Bearing simplify maintenance.
This feature ensures consistent performance and extends the bearing’s service life.

Application

Industrial Uses of 230/560 CA/C08W509 Bearing
230/560 CA/C08W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The brass cage ensures smooth operation even under high stress.

In wind turbines, 230/560 CA/C08W509 Bearing supports the main shaft, offering reliable performance in varying weather conditions. Its large bore size and metric measurements make it suitable for European turbine designs.

For mining equipment, 230/560 CA/C08W509 Bearing’s chrome steel construction withstands harsh environments, reducing downtime. The spherical roller design compensates for misalignment, extending service life.

Where Is 230/560 CA/C08W509 Bearing Used?
You’ll find 230/560 CA/C08W509 Bearing in paper mills, where it supports large rollers under constant load. Its high static radial load capacity ensures stability during production.

In steel plants, 230/560 CA/C08W509 Bearing handles extreme temperatures and heavy loads. The open seal design allows for easy lubrication, keeping operations running smoothly.

Built for Heavy-Duty Use: 230/560 CA/C08W509 Bearing
230/560 CA/C08W509 Bearing is ideal for construction equipment like cranes, where its dynamic radial load capacity is crucial. The P5 precision rating ensures consistent performance.

In marine applications, 230/560 CA/C08W509 Bearing’s corrosion-resistant materials and high load tolerance make it a dependable choice. The wide temperature range suits both cold and hot environments.

Automotive vs Aerospace: Applications of 230/560 CA/C08W509 Bearing
While 230/560 CA/C08W509 Bearing isn’t typical in cars, it’s vital in aerospace landing gear systems for its shock absorption. The large size and weight capacity meet aviation standards.

In industrial presses, 230/560 CA/C08W509 Bearing’s combined load handling shines. Its brass cage reduces friction, making it a practical option for high-pressure environments.
