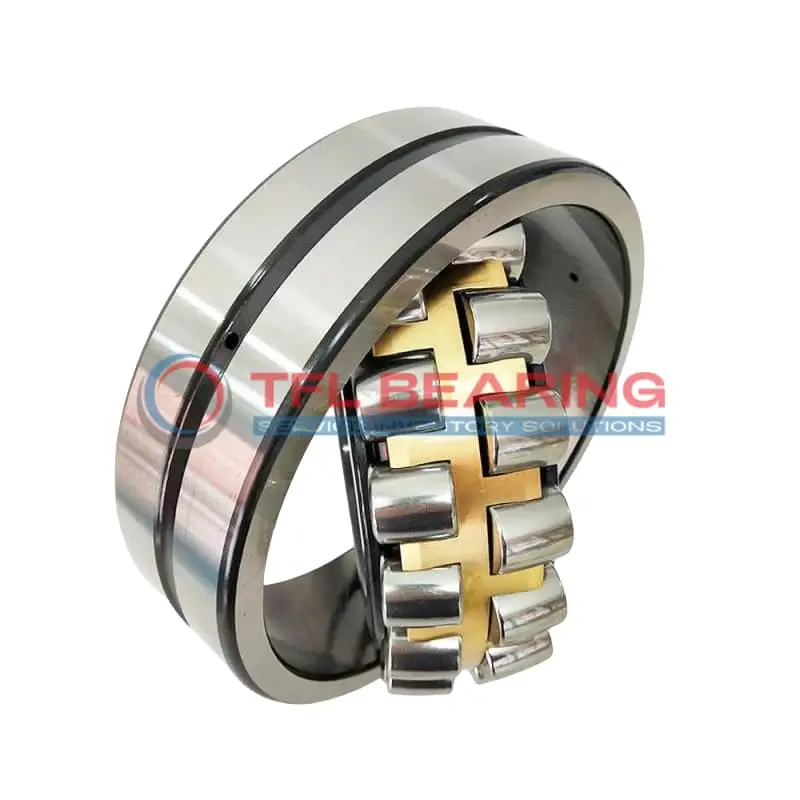

230/560 CA/C083W509 Double Row Spherical Roller Bearing

230/560 CA/C083W509 Double Row Spherical Roller Bearing

The 230/560 CA/C083W509 is a double-row spherical roller bearing with a large 560mm bore and 820mm outer diameter, built from tough chrome steel. It handles heavy combined loads, with a dynamic radial load capacity of 1,299,171 lbf and a static radial load of 2,293,051 lbf.

Its brass cage ensures smooth operation at speeds up to 750 RPM, while the spherical roller design accommodates misalignment. The open seal type allows for easy lubrication, with a 12mm hole and 22.3mm groove for maintenance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, operating in temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Weighing 350kg, it’s robust yet designed for efficient performance. The C3 radial clearance and P5 precision make it ideal for precise, heavy-duty use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 230/560 CA/C083W509
  • Brand TFL
  • Interchangeable SKF
  • Size 560 x 820 x 195 mm
  • Bore Dia 560 mm
  • Bore Dia Tolerance -0.05mm to 0
  • Outer Dia 820 mm
  • Outer Dia Tolerance -0.1mm to 0
  • Width 195 mm
  • Width Tolerance -0.5mm to 0
  • Shoulder Dia Of Inner Ring 646 mm
  • Shoulder/Recess Dia Of Outer Ring 746 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out P5
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 1299171 lbf
  • Static Radial Load 2293051 lbf
  • Max Speed 750 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 350 kg
  • Price （US$） US$10,152.14

Features

Performance Features of 230/560 CA/C083W509 Bearing

230/560 CA/C083W509 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 1,299,171 lbf, making it suitable for heavy-duty applications.

The brass cage ensures smooth operation by maintaining proper roller alignment.
With a maximum speed of 750 rpm, it delivers reliable performance in demanding conditions.

230/560 CA/C083W509 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance.

The lubrication groove and hole design in 230/560 CA/C083W509 Bearing facilitate easy maintenance.
This feature helps extend the bearing’s service life and reduces downtime.

230/560 CA/C083W509 Bearing’s double-row spherical roller design accommodates misalignment.
This makes it ideal for applications where shaft deflection or mounting errors may occur.

Application

Industrial Uses of 230/560 CA/C083W509 Bearing
230/560 CA/C083W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The brass cage adds durability, making it suitable for high-vibration environments.

In wind turbines, 230/560 CA/C083W509 Bearing supports the main shaft, ensuring smooth rotation under varying wind conditions. Its large bore size and robust construction make it ideal for renewable energy applications.

For mining equipment, 230/560 CA/C083W509 Bearing’s spherical roller design accommodates misalignment, reducing wear in harsh conditions. The chrome steel rollers provide long-lasting performance even under extreme loads.

What Makes 230/560 CA/C083W509 Bearing a Preferred Choice?
230/560 CA/C083W509 Bearing is often chosen for paper mill machinery due to its high radial load capacity and temperature resistance. The open seal design allows for easy lubrication, extending service life.

In steel production, 230/560 CA/C083W509 Bearing handles the intense heat and heavy loads of rolling mills. Its C3 radial clearance ensures reliable performance despite thermal expansion.

Built for Heavy-Duty Use: 230/560 CA/C083W509 Bearing
230/560 CA/C083W509 Bearing excels in construction equipment like cranes, where its combined load capability supports lifting operations. The metric sizing ensures compatibility with global machinery standards.

For marine applications, 230/560 CA/C083W509 Bearing’s corrosion-resistant materials withstand salty environments. Its high dynamic load rating makes it reliable for propeller shafts and deck machinery.
