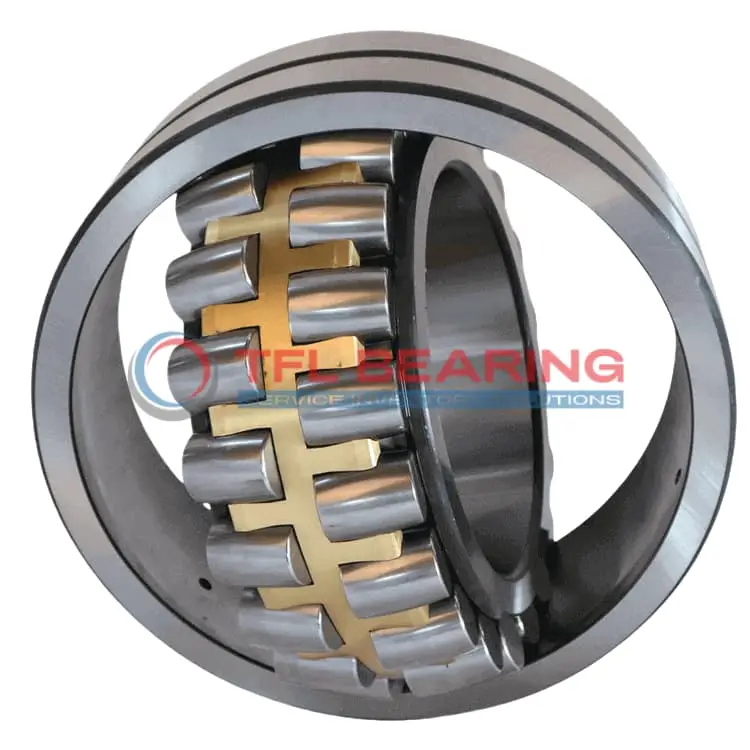

230/500 CAK C3 W506 Double Row Spherical Roller Bearing

230/500 CAK C3 W506 Double Row Spherical Roller Bearing

The 230/500 CAK C3 W506 is a double-row spherical roller bearing with a large 500mm bore and 720mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 979,717 lbf and operates smoothly at speeds up to 900 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial machinery or large gearboxes where high radial and axial loads are present.

Weighing 220kg, it’s designed for robust performance. Compliant with RoHS and REACH standards for safe use.

The lubrication groove (22.3mm wide) and holes (12mm diameter) make maintenance straightforward. Its spherical roller design helps accommodate misalignment, reducing wear.

Suitable for environments needing reliable performance under stress, such as mining equipment or large conveyors. The C3 radial clearance ensures flexibility in varying operating conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 230/500 CAK C3 W506
  • Brand TFL
  • Interchangeable SKF
  • Size 500 x 720 x 167 mm
  • Bore Dia 500 mm
  • Bore Dia Tolerance +0.063mm to 0
  • Outer Dia 720 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 167 mm
  • Width Tolerance -0.45mm to 0
  • Shoulder Dia Of Inner Ring 573 mm
  • Shoulder/Recess Dia Of Outer Ring 658 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.6 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 979717 lbf
  • Static Radial Load 175351 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 220 kg
  • Price （US$） US$6,873.30

Features

How Does 230/500 CAK C3 W506 Bearing Handle Heavy Loads?

230/500 CAK C3 W506 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, supporting dynamic radial loads up to 979,717 lbf.
The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 900 rpm, it performs reliably in demanding industrial applications.

What Makes 230/500 CAK C3 W506 Bearing Suitable for High-Temperature Applications?

230/500 CAK C3 W506 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its chrome steel rollers and rings resist thermal deformation, ensuring consistent performance.
The open design allows for easy lubrication, crucial for high-temperature environments.
This bearing is built to withstand harsh conditions while maintaining reliability.

Engineered for Precision: 230/500 CAK C3 W506 Bearing

230/500 CAK C3 W506 Bearing is designed with a taper bore for precise mounting and alignment.
The spherical roller design accommodates misalignment, reducing stress on surrounding components.
Its C3 radial clearance ensures optimal performance under varying thermal conditions.
This bearing is a robust choice for applications requiring both precision and durability.

Steel vs Ceramic Bearings: Strengths of 230/500 CAK C3 W506 Bearing

230/500 CAK C3 W506 Bearing uses chrome steel for both rings and rollers, offering excellent strength and wear resistance.
The brass cage enhances durability, making it suitable for heavy industrial use.
Unlike ceramic bearings, it provides a cost-effective solution without compromising performance.
Its design ensures reliable operation under high radial and combined loads.

Application

Industrial Uses of 230/500 CAK C3 W506 Bearing
230/500 CAK C3 W506 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. The brass cage ensures smooth operation even under demanding conditions.

Where Is 230/500 CAK C3 W506 Bearing Used?
In mining equipment, 230/500 CAK C3 W506 Bearing supports large rotating components, thanks to its high dynamic radial load capacity. The taper bore design also simplifies installation in shaft assemblies.

Built for Heavy-Duty Use: 230/500 CAK C3 W506 Bearing
230/500 CAK C3 W506 Bearing excels in paper mill machinery, where its chrome steel construction withstands harsh environments. The C3 radial clearance allows for thermal expansion during continuous operation.

Automotive vs Aerospace: Applications of 230/500 CAK C3 W506 Bearing
While 230/500 CAK C3 W506 Bearing is too large for most automotive uses, it’s ideal for aerospace ground support equipment like aircraft tugs. Its high static radial load capacity ensures reliability in heavy lifting applications.

Perfect Fit for Automation: 230/500 CAK C3 W506 Bearing
230/500 CAK C3 W506 Bearing is found in large robotic welding systems, where its spherical rollers accommodate shaft deflections. The lubrication groove design simplifies maintenance in automated production lines.
