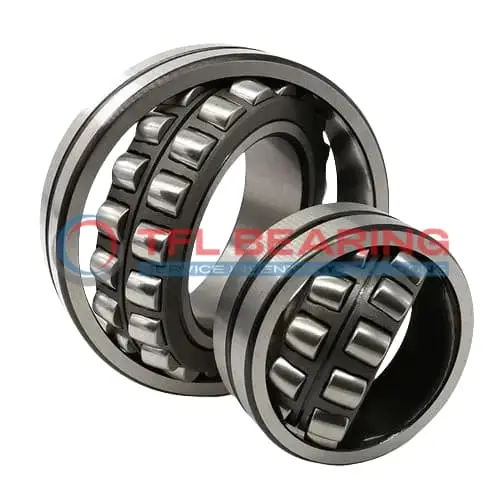

22338 CC/W513 Double Row Spherical Roller Bearing

22338 CC/W513 Double Row Spherical Roller Bearing

The 22338 CC/W513 is a double-row spherical roller bearing with a 190mm bore and 400mm outer diameter, built from tough chrome steel for durability. It handles combined loads up to 501774 lbf and operates smoothly at speeds up to 1600 RPM.

Its open design allows easy lubrication, with a 12mm hole and 22.3mm groove for maintenance. The steel cage ensures reliable performance, even in temperatures from -30°C to 200°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 79.5kg, it’s built to last while meeting RoHS and REACH standards for safety. The spherical roller design helps accommodate misalignment, reducing wear over time.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22338 CC/W513
  • Brand TFL
  • Interchangeable SKF
  • Size 190 x 400 x 132 mm
  • Bore Dia 190 mm
  • Bore Dia Tolerance -0.03mm to 0
  • Outer Dia 400 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 132 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 236 mm
  • Shoulder/Recess Dia Of Outer Ring 333 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 501774 lbf
  • Static Radial Load 595744 lbf
  • Max Speed 1600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 79.5 kg
  • Price （US$） US$1,017.69

Features

Performance Features of 22338 CC/W513 Bearing

22338 CC/W513 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 501774 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for self-alignment, reducing stress and wear.
This feature makes 22338 CC/W513 Bearing suitable for misaligned shaft applications.

With a maximum speed of 1600 rpm, it delivers both durability and efficiency.
The steel cage maintains roller alignment, further enhancing performance and longevity.

22338 CC/W513 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
Its open design simplifies lubrication, ensuring smooth operation over extended periods.

Application

Industrial Uses of 22338 CC/W513 Bearing
The 22338 CC/W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its chrome steel construction ensures durability even in harsh industrial environments.

Where Is 22338 CC/W513 Bearing Used?
You’ll often find 22338 CC/W513 Bearing in mining equipment, where its high load capacity and spherical roller design accommodate misalignment. The open seal type allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 22338 CC/W513 Bearing
22338 CC/W513 Bearing is ideal for paper mills and cement plants, thanks to its robust steel cage and high-temperature tolerance. Its metric sizing makes it a versatile choice for global machinery standards.

Automotive vs Aerospace: Applications of 22338 CC/W513 Bearing
In automotive applications, 22338 CC/W513 Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems requiring reliability. Its combined load capability suits diverse operational demands.

Essential Roles of 22338 CC/W513 Bearing
22338 CC/W513 Bearing plays a key role in wind turbines, where its spherical rollers compensate for shaft misalignment. The high dynamic load rating ensures consistent performance under varying wind conditions.
