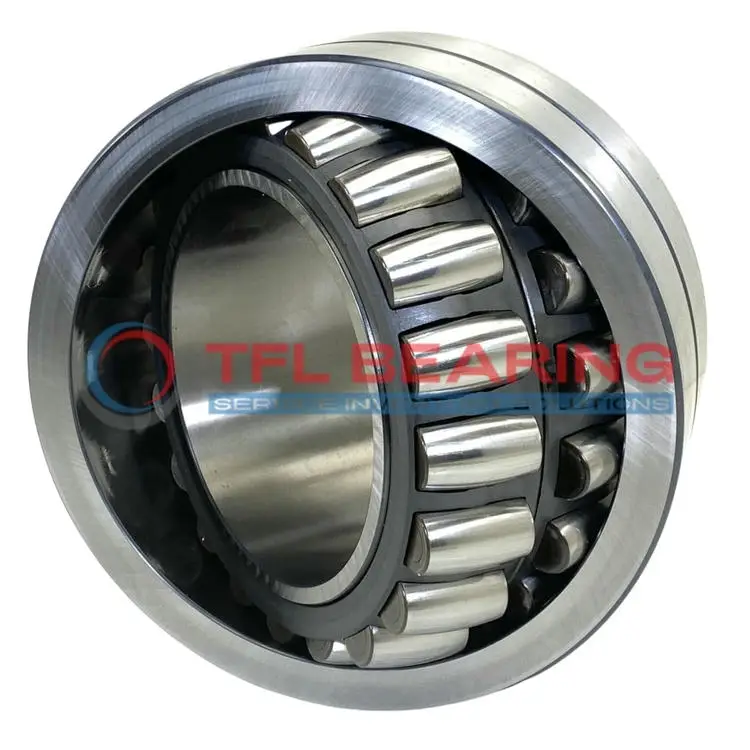

22336 CC/W513 Double Row Spherical Roller Bearing

22336 CC/W513 Double Row Spherical Roller Bearing

The 22336 CC/W513 is a double-row spherical roller bearing with a 180mm bore and 380mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 466928 lbf and operates smoothly at speeds up to 1700 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The bearing requires regular lubrication for optimal performance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy machinery like crushers or industrial gearboxes where high radial loads are common.

Weighing 68.5kg, it’s built for robust performance in temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards for safe industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22336 CC/W513
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 380 x 126 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 380 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 126 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 224 mm
  • Shoulder/Recess Dia Of Outer Ring 317 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 466928 lbf
  • Static Radial Load 550782 lbf
  • Max Speed 1700 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 68.5 kg

Features

Why Choose 22336 CC/W513 Bearing for Precision Tasks?

22336 CC/W513 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability and resistance to wear, even under heavy loads.

With a dynamic radial load capacity of 466928 lbf, it performs reliably in demanding industrial applications.
The steel cage maintains roller alignment, enhancing stability and extending operational life.

22336 CC/W513 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring smooth performance over time.

Application

Industrial Uses of 22336 CC/W513 Bearing
22336 CC/W513 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in harsh operating conditions.

Where Is 22336 CC/W513 Bearing Used?
You’ll often find 22336 CC/W513 Bearing in mining equipment, where its high load capacity and spherical roller design accommodate misalignment. Its open seal type allows for easy lubrication, extending service life in dusty environments.

Built for Heavy-Duty Use: 22336 CC/W513 Bearing
22336 CC/W513 Bearing excels in paper mill machinery, supporting large rollers under constant stress. The steel cage and chrome steel rollers provide reliable performance at high temperatures.

Automotive vs Aerospace: Applications of 22336 CC/W513 Bearing
In automotive applications, 22336 CC/W513 Bearing is used in large truck transmissions, while in aerospace, it supports ground-handling equipment. Its metric sizing makes it versatile for various industrial needs.

Perfect Fit for Automation: 22336 CC/W513 Bearing
22336 CC/W513 Bearing is ideal for robotic assembly lines, where its high-speed capability and load handling ensure smooth operation. The lubrication groove design reduces maintenance downtime.
