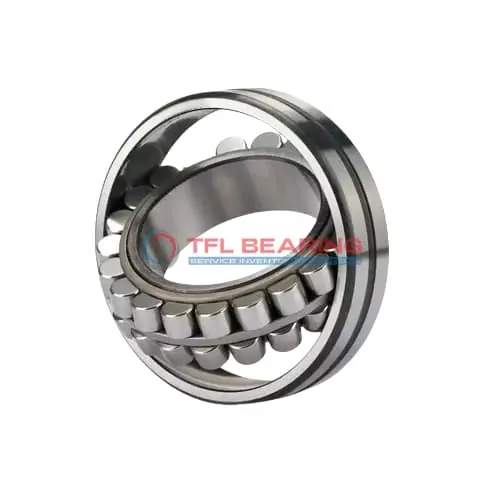

22328A CY Double Row Spherical Roller Bearing

22328A CY Double Row Spherical Roller Bearing

The 22328A CY is a double-row spherical roller bearing with a 140mm bore and 300mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 305515 lbf and operates smoothly at speeds up to 560 RPM.

Its brass cage and open design ensure durability and easy lubrication, while the spherical rollers accommodate misalignment. The bearing works in temperatures from -30°C to 200°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 36.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22328A CY
  • Brand TFL
  • Interchangeable SKF
  • Size 140 x 300 x 102 mm
  • Bore Dia 140 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 102 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 169 mm
  • Shoulder/Recess Dia Of Outer Ring 261 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 305515 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 560 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 36.5 kg
  • Price （US$） US$361.26

Features

Performance Features of 22328A CY Bearing

22328A CY Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 305515 lbf, ensuring dependable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and enhancing longevity.
With a maximum speed of 560 rpm, it balances strength and operational efficiency.

22328A CY Bearing operates in temperatures from -30° to 200°C, suitable for varied industrial environments.
Its double-row spherical design accommodates misalignment, improving reliability under challenging conditions.

The lubrication groove and hole design in 22328A CY Bearing ensure consistent grease distribution.
This feature reduces wear and extends maintenance intervals, lowering overall operational costs.

Application

Industrial Uses of 22328A CY Bearing
The 22328A CY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads.
Its brass cage and chrome steel construction ensure durability in harsh environments, making it a reliable choice for mining and construction equipment.

Where Is 22328A CY Bearing Used?
You’ll often find 22328A CY Bearing in wind turbines, where its ability to handle combined loads and misalignment is crucial for long-term performance.
The metric sizing and open design make it easy to integrate into various industrial systems, from paper mills to conveyor belts.

Built for Heavy-Duty Use: 22328A CY Bearing
22328A CY Bearing excels in applications like gearboxes and rolling mills, where high dynamic radial loads are common.
The lubrication groove and holes simplify maintenance, ensuring smooth operation even under continuous stress.

Automotive vs Aerospace: Applications of 22328A CY Bearing
In automotive systems, 22328A CY Bearing supports large axles and transmissions, thanks to its robust load capacity.
For aerospace ground equipment, its temperature range and precision make it suitable for demanding operational conditions.

Perfect Fit for Automation: 22328A CY Bearing
22328A CY Bearing is ideal for robotic arms and automated production lines, where its spherical rollers accommodate slight misalignments.
The brass cage reduces friction, ensuring quiet and efficient movement in high-precision tasks.
