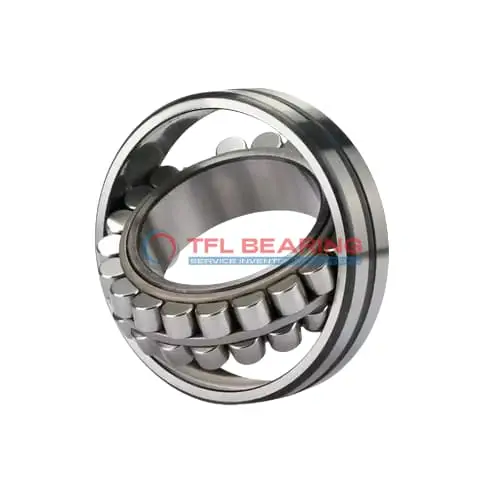

22328 CKY C3 Double Row Spherical Roller Bearing

22328 CKY C3 Double Row Spherical Roller Bearing

The 22328 CKY C3 is a double-row spherical roller bearing with a 140mm bore and 300mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 305066 lbf and operates smoothly at speeds up to 3400 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication through the 9mm holes. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a tapered bore (1:12 ratio), it ensures secure fitting, and the C3 radial clearance accommodates thermal expansion. Ideal for heavy-duty applications like mining equipment or industrial gearboxes.

Weighing 35kg, it’s built for robust performance. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22328 CKY C3
  • Brand TFL
  • Interchangeable SKF
  • Size 140 x 300 x 102 mm
  • Bore Dia 140 mm
  • Bore Dia Tolerance +0.04mm to 0
  • Outer Dia 300 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 102 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 175 mm
  • Shoulder/Recess Dia Of Outer Ring 247 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 305066 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 3400 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 35 kg
  • Price （US$） US$369.18

Features

How Is 22328 CKY C3 Bearing Engineered for Reliability?

22328 CKY C3 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
The chrome steel rings and rollers provide excellent strength, supporting dynamic radial loads up to 305066 lbf.

Its brass cage ensures smooth roller movement, reducing friction and extending operational life.
With a maximum speed of 3400 rpm, it delivers consistent performance in high-demand applications.

The tapered bore design simplifies installation, while the C3 radial clearance accommodates thermal expansion.
Operating between -30°C to 200°C, it remains reliable in varied temperature conditions.

Application

Industrial Uses of 22328 CKY C3 Bearing
22328 CKY C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment effortlessly. The brass cage ensures smooth operation even under high radial loads.

Where Is 22328 CKY C3 Bearing Used?
You’ll often find 22328 CKY C3 Bearing in mining equipment, where its robust construction withstands harsh conditions. Its tapered bore also makes installation straightforward in large industrial setups.

Built for Heavy-Duty Use: 22328 CKY C3 Bearing
22328 CKY C3 Bearing excels in paper mills and steel plants, thanks to its high dynamic load capacity. The chrome steel rollers provide durability, while the C3 clearance accommodates thermal expansion.

Automotive vs Aerospace: Applications of 22328 CKY C3 Bearing
In automotive applications, 22328 CKY C3 Bearing supports large drivetrains, offering reliability under combined loads. For aerospace, its temperature range makes it suitable for auxiliary equipment.

Essential Roles of 22328 CKY C3 Bearing
22328 CKY C3 Bearing is vital in wind turbines, where its spherical rollers manage variable loads. The open design allows for easy lubrication, extending service life in demanding environments.
