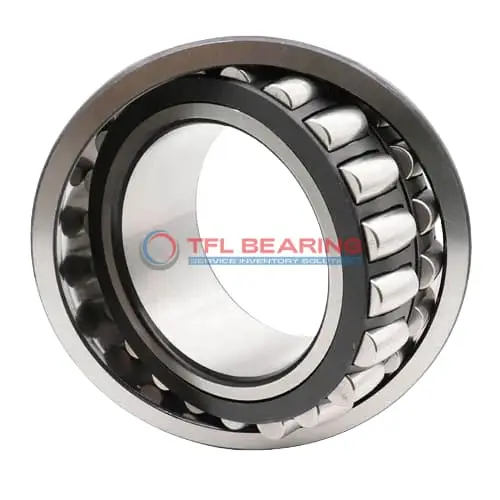

22324 CJ Double Row Spherical Roller Bearing

22324 CJ Double Row Spherical Roller Bearing

The 22324 CJ is a double-row spherical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 22908 lbf and runs smoothly at speeds up to 3900 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction requires regular lubrication for optimal performance.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 22.5kg, it’s designed for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22324 CJ
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 260 x 86 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 216 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 22908 lbf
  • Static Radial Load 251786 lbf
  • Max Speed 3900 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 22.5 kg
  • Price （US$） US$250.02

Features

How Does 22324 CJ Bearing Handle Combined Loads?

22324 CJ Bearing features a double-row spherical roller design, ideal for managing both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 22908 lbf.
The steel cage maintains roller alignment, enhancing performance and longevity.
With a maximum speed of 3900 rpm, it suits high-demand industrial applications.

What Makes 22324 CJ Bearing Suitable for High-Temperature Applications?

22324 CJ Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its chrome steel rollers and rings resist thermal deformation, ensuring consistent performance.
The open design allows for easy lubrication, reducing friction in extreme conditions.
This makes it a reliable choice for heavy machinery in harsh environments.

Built for Reliability: 22324 CJ Bearing

22324 CJ Bearing is engineered with precision to handle heavy loads and high speeds.
Its spherical roller design accommodates misalignment, reducing stress on components.
The robust chrome steel construction ensures long service life even under demanding conditions.
With a static radial load capacity of 251786 lbf, it delivers dependable performance.

Application

Industrial Uses of 22324 CJ Bearing
22324 CJ Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

Where Is 22324 CJ Bearing Used?
You’ll often find 22324 CJ Bearing in conveyor systems and gearboxes, thanks to its ability to manage high loads and misalignment. Its open design simplifies lubrication, making maintenance straightforward for operators.

Built for Heavy-Duty Use: 22324 CJ Bearing
22324 CJ Bearing excels in mining equipment, where its robust construction withstands harsh conditions. The spherical roller design accommodates shaft misalignment, reducing wear and tear over time.

Automotive vs Aerospace: Applications of 22324 CJ Bearing
In automotive applications, 22324 CJ Bearing supports heavy-duty transmissions and axles, while in aerospace, it’s used in auxiliary systems requiring reliable load handling. Its metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 22324 CJ Bearing
22324 CJ Bearing is ideal for robotic arms and automated assembly lines, where precision and load capacity are key. The steel cage enhances stability, ensuring smooth operation in high-speed scenarios.
