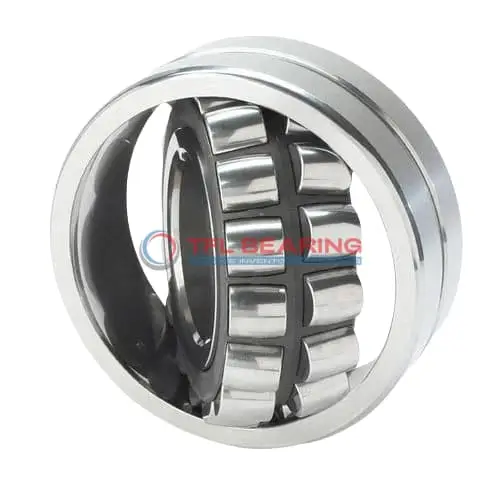

22324/C4W33VA9B1 Double Row Spherical Roller Bearing

22324/C4W33VA9B1 Double Row Spherical Roller Bearing

The 22324/C4W33VA9B1 is a double-row spherical roller bearing with a 120mm bore and 260mm outer diameter, built from robust chrome steel for heavy-duty use. It supports combined loads and can handle static radial loads up to 251786 lbf, making it suitable for demanding applications.

Its open design and steel cage ensure durability, while the C4 radial clearance allows for thermal expansion in high-temperature environments. The bearing operates smoothly in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for industrial machinery like crushers or conveyors where heavy loads and misalignment are common.

Weighing 22kg, it’s designed for stability and long service life. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial settings. Lubrication is required for optimal performance, with a maximum speed of 20 RPM.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22324/C4W33VA9B1
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 260 x 86 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 216 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Static Radial Load 251786 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 22 kg

Features

Performance Features of 22324/C4W33VA9B1 Bearing

22324/C4W33VA9B1 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its static radial load capacity reaches 251786 lbf, ensuring stability in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, improving operational flexibility.
With a maximum speed of 20 rpm, it is suited for slow, high-load environments.

22324/C4W33VA9B1 Bearing operates in temperatures from -30° to 200°C, making it versatile for various conditions.
The C4 radial clearance ensures smooth performance under thermal expansion.

The lubrication groove and hole design in 22324/C4W33VA9B1 Bearing facilitate easy maintenance.
Its steel cage keeps the rollers aligned, reducing wear and extending service life.

22324/C4W33VA9B1 Bearing’s cylindrical bore simplifies installation, saving time and effort.
The open seal type allows for easy inspection and relubrication when needed.

Application

Industrial Uses of 22324/C4W3W33VA9B1 Bearing
22324/C4W3W33VA9B1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The spherical roller type ensures smooth operation even with slight misalignments.

In construction equipment, 22324/C4W3W33VA9B1 Bearing supports components like conveyor pulleys, thanks to its high static radial load capacity. The chrome steel construction provides durability in dusty or harsh environments.

For mining applications, 22324/C4W3W33VA9B1 Bearing’s C4 radial clearance allows for thermal expansion under heavy loads. Its lubrication groove design simplifies maintenance, reducing downtime in critical operations.

What Makes 22324/C4W3W33VA9B1 Bearing a Preferred Choice?
22324/C4W3W33VA9B1 Bearing excels in paper mill machinery, where its steel cage withstands high humidity and chemical exposure. The wide temperature range also ensures reliability in varying conditions.

In wind turbines, 22324/C4W3W33VA9B1 Bearing’s robust design handles fluctuating loads and vibrations. Its metric sizing makes it compatible with many European turbine models.

Built for Heavy-Duty Use: 22324/C4W3W33VA9B1 Bearing
22324/C4W3W33VA9B1 Bearing is ideal for steel rolling mills, where its high dynamic load capacity ensures long service life. The open seal type allows for easy relubrication during maintenance.

For marine applications, 22324/C4W3W33VA9B1 Bearing’s corrosion-resistant materials perform well in salty environments. Its cylindrical bore simplifies installation on shafts.
