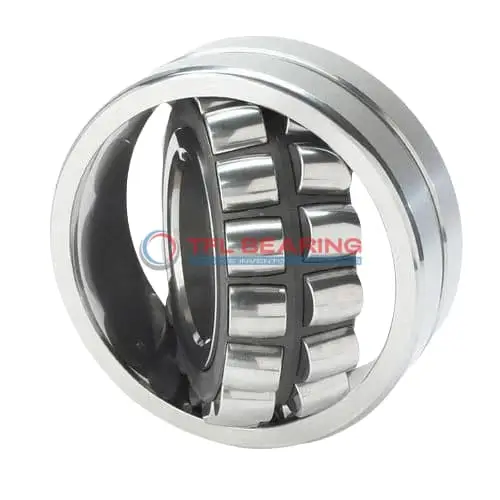

22324/C3W33VA9B1 Double Row Spherical Roller Bearing

22324/C3W33VA9B1 Double Row Spherical Roller Bearing

The 22324/C3W33VA9B1 is a double-row spherical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads and operates smoothly at speeds up to 20 RPM.

Its open design and steel cage ensure durability, while the C3 radial clearance allows for thermal expansion. The bearing works in temperatures from -30°C to 200°C, making it suitable for harsh environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for heavy machinery like crushers or conveyors where robust performance is needed.

Weighing 22kg, it’s built for heavy-duty applications. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22324/C3W33VA9B1
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 260 x 86 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 216 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Static Radial Load 251786 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 22 kg

Features

Performance Features of 22324/C3W33VA9B1 Bearing

22324/C3W33VA9B1 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its static radial load capacity reaches 251786 lbf, ensuring stability in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

22324/C3W33VA9B1 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its robust construction ensures reliable performance in various industrial environments.

With a maximum speed of 20 rpm, this bearing is ideal for slow-moving, high-load applications.
The steel cage maintains roller alignment, contributing to smooth and consistent operation.

Application

Industrial Uses of 22324/C3W33VA9B1 Bearing
22324/C3W33VA9B1 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps compensate for misalignment, ensuring smooth operation in demanding environments.

Where Is 22324/C3W33VA9B1 Bearing Used?
In mining equipment, 22324/C3W33VA9B1 Bearing supports large loads and harsh conditions, thanks to its robust chrome steel construction. The C3 radial clearance also allows for thermal expansion, making it suitable for high-temperature applications.

Built for Heavy-Duty Use: 22324/C3W33VA9B1 Bearing
22324/C3W33VA9B1 Bearing excels in paper mill machinery, where its steel cage and lubrication grooves reduce friction and wear. The wide temperature range ensures reliability even in extreme operating conditions.

Automotive vs Aerospace: Applications of 22324/C3W33VA9B1 Bearing
In automotive applications, 22324/C3W33VA9B1 Bearing is found in heavy-duty trucks, handling combined loads in wheel hubs. For aerospace, its precision and durability make it suitable for ground support equipment, though not for flight-critical systems.

Key Fields for 22324/C3W33VA9B1 Bearing
22324/C3W33VA9B1 Bearing is ideal for wind turbines, where its ability to handle misalignment and heavy loads ensures long service life. The open design allows for easy relubrication, reducing maintenance downtime.
