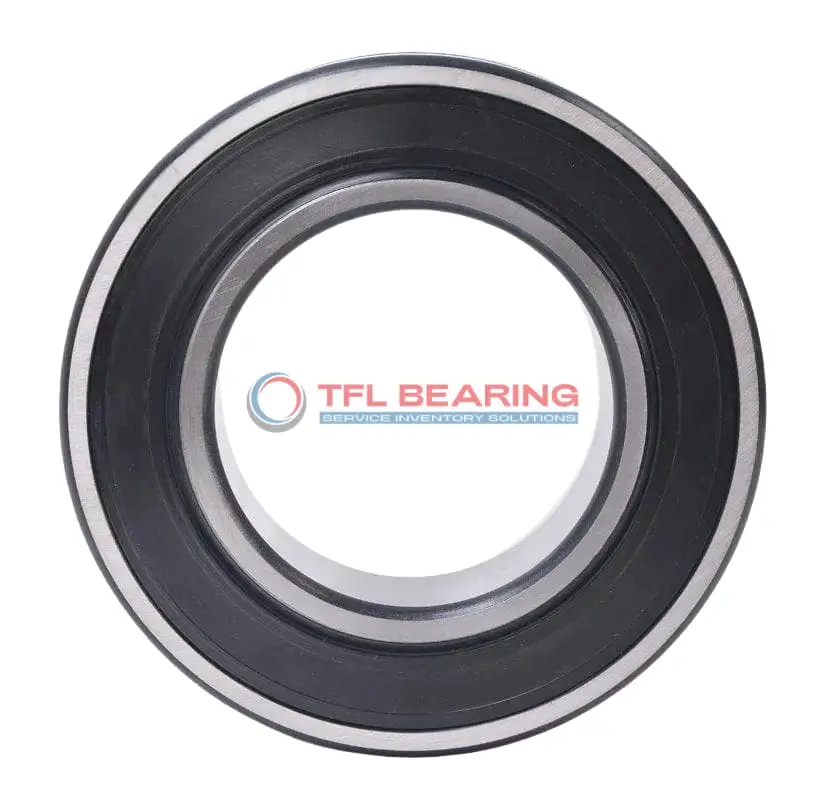

22324-2CS5/VT143 Double Row Spherical Roller Bearing

The 22324-2CS5/VT143 is a double-row spherical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 229755 lbf and operates smoothly at speeds up to 640 RPM.

Its double-seal design keeps contaminants out while the steel cage ensures durability. The bearing requires lubrication and works in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 23kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 22324-2CS5/VT143
Brand TFL
Interchangeable SKF
Size 120 x 260 x 86 mm
Bore Dia 120 mm
Bore Dia Tolerance -0.02mm to 0
Outer Dia 260 mm
Outer Dia Tolerance -0.035mm to 0
Width 86 mm
Width Tolerance -0.08mm to 0
Shoulder Dia Of Inner Ring 147 mm
Shoulder/Recess Dia Of Outer Ring 229 mm
Width Of Lubrication Groove 13.9 mm
Diameter Of Lubrication Hole 7.5 mm
Chamfer Dimension min.3 mm
System of Measurement Metric
Radial run-out Standard
Bearing Type Roller
Roller Bearing Type Spherical
Bore Type Cylindrical
For Load Direction Combined
Construction Double Row
Seal Type Double Seal
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 229755 lbf
Static Radial Load 251786 lbf
Max Speed 640 rpm
Lubrication Required
Temperature Range -30° to 200 °C
Radial Clearance CN
RoHs Compliant
REACH Compliant
Weight 23 kg
Price （US$） US$390.05

Features

Performance Features of 22324-2CS5/VT143 Bearing

22324-2CS5/VT143 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 229755 lbf, making it suitable for heavy-duty applications.

The double-seal design of 22324-2CS5/VT143 Bearing protects against contaminants, ensuring reliable operation.
Its spherical roller type allows for slight misalignment, reducing stress on the bearing.

22324-2CS5/VT143 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
With a maximum speed of 640 rpm, it balances performance and durability.

The steel cage in 22324-2CS5/VT143 Bearing maintains roller alignment, extending service life.
Its lubrication groove and holes ensure consistent performance under demanding conditions.

Application

Industrial Uses of 22324-2CS5/VT143 Bearing
22324-2CS5/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in tough conditions.

What Makes 22324-2CS5/VT143 Bearing a Preferred Choice?
In mining equipment, 22324-2CS5/VT143 Bearing’s chrome steel rollers and double seals provide long-lasting performance, even in dusty environments. Its high dynamic load capacity makes it suitable for conveyor systems and gearboxes.

Built for Heavy-Duty Use: 22324-2CS5/VT143 Bearing
For wind turbines, 22324-2CS5/VT143 Bearing’s ability to handle combined loads and temperature variations ensures reliable energy production. The steel cage and lubrication grooves further enhance durability in continuous operation.

Automotive vs Aerospace: Applications of 22324-2CS5/VT143 Bearing
In automotive applications, 22324-2CS5/VT143 Bearing supports heavy axles and drivetrains, while in aerospace, its precision and load capacity make it useful for landing gear systems. The metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 22324-2CS5/VT143 Bearing
22324-2CS5/VT143 Bearing is ideal for robotic arms and automated assembly lines, where its low friction and high-speed capabilities improve efficiency. The double seals also protect against contamination in cleanroom environments.
