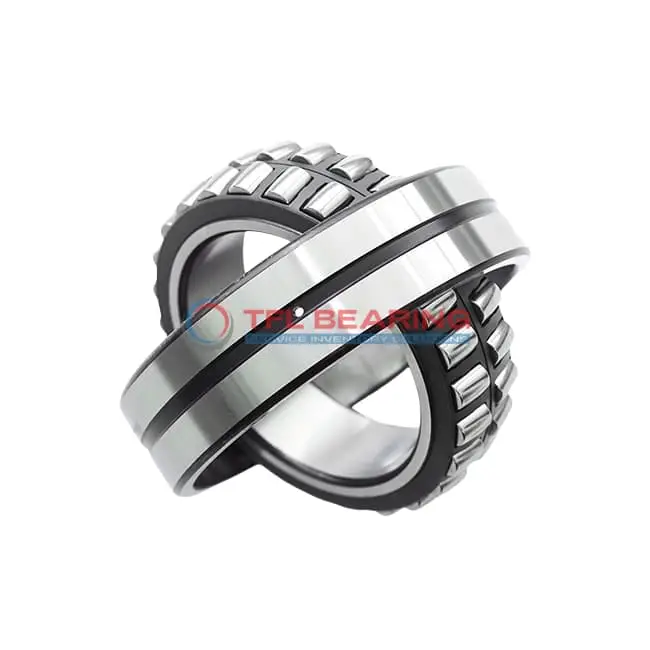

22322 CKY C3 W33 Double Row Spherical Roller Bearing

22322 CKY C3 W33 Double Row Spherical Roller Bearing

The 22322 CKY C3 W33 is a double-row spherical roller bearing with a 110mm bore and 240mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 222336 lbf and operates smoothly at speeds up to 2800 RPM.

Its brass cage and open design ensure durability, while the tapered bore (1:12) allows for secure fitting. The bearing handles temperatures from -30°C to 200°C, making it versatile for various conditions.

Featuring a lubrication groove and holes for easy maintenance, this model is interchangeable with SKF bearings. Ideal for heavy-duty applications like mining equipment or industrial gearboxes where high radial loads are common.

Weighing 18kg, it’s built to last with C3 radial clearance. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22322 CKY C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 110 x 240 x 80 mm
  • Bore Dia 110 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 240 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 143 mm
  • Shoulder/Recess Dia Of Outer Ring 204 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 222336 lbf
  • Static Radial Load 251786 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 18 kg
  • Price （US$） US$208.62

Features

How Does 22322 CKY C3 W33 Bearing Handle Combined Loads?

22322 CKY C3 W33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 222336 lbf.

The brass cage maintains roller alignment, reducing friction and extending the bearing’s operational life.
With a maximum speed of 2800 rpm, it performs reliably in high-demand applications.

22322 CKY C3 W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, ensuring a secure fit on shafts.

The lubrication groove and holes in 22322 CKY C3 W33 Bearing promote consistent grease distribution.
This reduces wear and maintenance needs, even in heavy-duty environments.

Application

Industrial Uses of 22322 CKY C3 W33 Bearing
22322 CKY C3 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.

What Makes 22322 CKY C3 W33 Bearing a Preferred Choice?
In mining equipment, 22322 CKY C3 W33 Bearing stands out for its ability to withstand harsh conditions and heavy loads. The tapered bore design simplifies installation, making it a reliable option for demanding applications.

Built for Heavy-Duty Use: 22322 CKY C3 W33 Bearing
For wind turbines, 22322 CKY C3 W33 Bearing offers excellent performance with its high dynamic load capacity and temperature resistance. The lubrication groove ensures consistent performance over long periods.

Automotive vs Aerospace: Applications of 22322 CKY C3 W33 Bearing
In automotive applications, 22322 CKY C3 W33 Bearing is ideal for gearboxes and drivetrains, providing durability under combined loads. Its aerospace uses include auxiliary systems where reliability is critical.

Perfect Fit for Automation: 22322 CKY C3 W33 Bearing
22322 CKY C3 W33 Bearing is well-suited for robotic arms in manufacturing, thanks to its precision and load-handling capabilities. The chrome steel construction ensures long service life in continuous operation.
