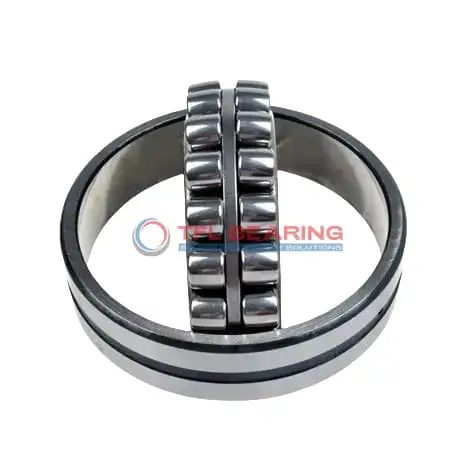

22320 Y CB Double Row Spherical Roller Bearing

22320 Y CB Double Row Spherical Roller Bearing

The 22320 Y CB is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 190413 lbf and operates smoothly at speeds up to 3000 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The bearing features a lubrication groove and holes for convenient maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 13kg, it’s built to handle tough conditions while complying with RoHS and REACH standards for safety and reliability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22320 Y CB
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 73 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 130 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 13 kg
  • Price （US$） 152.46

Features

Performance Features of 22320 Y CB Bearing

22320 Y CB Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, making it suitable for heavy-duty applications.
The brass cage ensures smooth operation by keeping the rollers aligned and reducing friction.
With a maximum speed of 3000 rpm, it delivers reliable performance in various industrial settings.

How Is 22320 Y CB Bearing Engineered for Reliability?

22320 Y CB Bearing features a double-row spherical roller design, providing excellent load distribution.
The chrome steel construction enhances durability, even under high stress and temperature conditions.
Its lubrication groove and hole design ensure consistent oil flow, reducing wear over time.
This bearing operates efficiently within a temperature range of -30° to 200°C.

Built for Durability: 22320 Y CB Bearing

22320 Y CB Bearing’s robust design includes a brass cage for reduced friction and longer service life.
The spherical roller type accommodates misalignment, ensuring smooth operation in demanding environments.
With a static radial load capacity of 213568 lbf, it handles heavy loads with ease.
Its metric dimensions (100 mm x 215 mm x 73 mm) make it compatible with standard industrial equipment.

Steel vs Ceramic Bearings: Strengths of 22320 Y CB Bearing

22320 Y CB Bearing uses chrome steel for both rings and rollers, balancing strength and cost-effectiveness.
The brass cage adds durability while maintaining smooth operation under combined loads.
Its design includes a lubrication groove and hole, ensuring consistent performance over time.
With a wide temperature range (-30° to 200°C), it adapts to various working conditions.

Application

Industrial Uses of 22320 Y CB Bearing
22320 Y CB Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. The brass cage ensures smooth operation even under high stress.

What Makes 22320 Y CB Bearing a Preferred Choice?
In mining equipment, 22320 Y CB Bearing’s spherical rollers accommodate misalignment, reducing wear in harsh conditions. Its chrome steel construction offers durability, making it suitable for long-term use.

Built for Heavy-Duty Use: 22320 Y CB Bearing
For wind turbines, 22320 Y CB Bearing supports rotor shafts, handling both radial and axial loads. The lubrication groove design simplifies maintenance, extending service intervals.

Automotive vs Aerospace: Applications of 22320 Y CB Bearing
In trucks, 22320 Y CB Bearing is found in axle systems, providing reliable performance under heavy loads. Its high-temperature tolerance also makes it adaptable for certain aerospace components.

Perfect Fit for Automation: 22320 Y CB Bearing
22320 Y CB Bearing works well in robotic arms, where precision and load capacity are key. The open seal type allows for easy lubrication, ensuring consistent movement.
