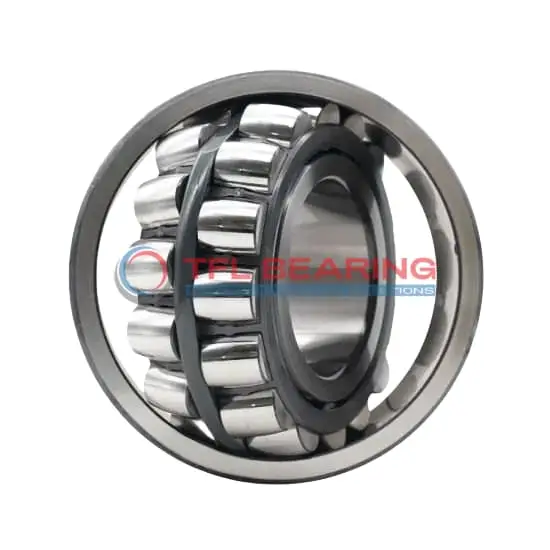

22320 E/C3W509 Double Row Spherical Roller Bearing

22320 E/C3W509 Double Row Spherical Roller Bearing

The 22320 E/C3W509 is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 190413 lbf and operates smoothly at speeds up to 3000 RPM.

Its open design and C3 radial clearance allow for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 13kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards. The lubrication groove and holes simplify maintenance, extending its service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22320 E/C3W509
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 73 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 130 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 13 kg

Features

Performance Features of 22320 E/C3W509 Bearing

22320 E/C3W509 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress and wear.
With a maximum speed of 3000 rpm, it maintains efficiency even under demanding conditions.

22320 E/C3W509 Bearing operates in temperatures from -30° to 200°C, suitable for various environments.
The C3 radial clearance provides optimal performance under thermal expansion.

The steel cage ensures proper roller alignment, enhancing durability and reducing maintenance needs.
Its open design simplifies lubrication, keeping operational costs low.

Application

Industrial Uses of 22320 E/C3W509 Bearing
22320 E/C3W509 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in demanding conditions.

Where Is 22320 E/C3W509 Bearing Used?
You’ll often find 22320 E/C3W509 Bearing in mining equipment, where its robust build and high load capacity are essential. Its C3 radial clearance also makes it suitable for applications with thermal expansion, like large industrial gearboxes.

Built for Heavy-Duty Use: 22320 E/C3W509 Bearing
22320 E/C3W509 Bearing excels in paper mill machinery, thanks to its chrome steel rollers and steel cage for durability. The open design allows for easy relubrication, extending service life in dusty or humid environments.

Automotive vs Aerospace: Applications of 22320 E/C3W509 Bearing
In automotive applications, 22320 E/C3W509 Bearing supports heavy axles and transmissions, while in aerospace, it’s used in landing gear systems. Its high-temperature tolerance ensures reliability in both sectors.

Practical Applications of 22320 E/C3W509 Bearing
22320 E/C3W509 Bearing is a go-to for wind turbine generators, where its spherical rollers handle variable loads and misalignment. The metric sizing ensures compatibility with global turbine designs.
