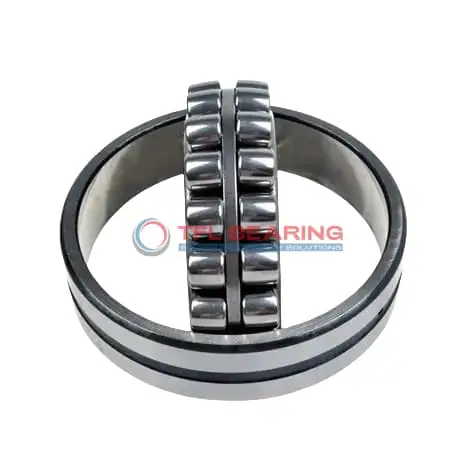

22320 CK W33 C3 Double Row Spherical Roller Bearing

22320 CK W33 C3 Double Row Spherical Roller Bearing

The 22320 CK W33 C3 is a double-row spherical roller bearing with a 100mm bore and 215mm outer diameter, built from tough chrome steel. It handles combined loads up to 190413 lbf and runs smoothly at speeds up to 3000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads are common. It operates in temperatures from -30°C to 200°C.

Weighing 13kg, it’s a robust choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22320 CK W33 C3
  • Brand TFL
  • Interchangeable SKF
  • Size 100 x 215 x 73 mm
  • Bore Dia 100 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 130 mm
  • Shoulder/Recess Dia Of Outer Ring 184 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 190413 lbf
  • Static Radial Load 213568 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 13 kg
  • Price （US$） 152.46

Features

Performance Features of 22320 CK W33 C3 Bearing

22320 CK W33 C3 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 190413 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 3000 rpm, it delivers reliable performance in demanding environments.

22320 CK W33 C3 Bearing features a lubrication groove and hole for consistent grease distribution.
This design helps maintain optimal performance and extends the bearing’s service life.

The C3 radial clearance allows for thermal expansion, ensuring stability in high-temperature conditions.
Its temperature range of -30° to 200°C makes it versatile for various industrial applications.

Application

Industrial Uses of 22320 CK W33 C3 Bearing
22320 CK W33 C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller type also compensates for misalignment, ensuring reliable performance in tough conditions.

What Makes 22320 CK W33 C3 Bearing a Preferred Choice?
In mining equipment, 22320 CK W33 C3 Bearing’s robust construction and C3 clearance allow for thermal expansion under heavy loads. Its lubrication groove design simplifies maintenance, reducing downtime in demanding applications.

Built for Heavy-Duty Use: 22320 CK W33 C3 Bearing
For paper mill machinery, 22320 CK W33 C3 Bearing’s chrome steel rollers withstand constant moisture and high speeds. The tapered bore ensures a secure fit, preventing slippage during prolonged operation.

Automotive vs Aerospace: Applications of 22320 CK W33 C3 Bearing
In truck wheel hubs, 22320 CK W33 C3 Bearing’s combined load capacity supports both weight and steering forces. While not typical in aerospace, its high-speed tolerance makes it suitable for some ground support equipment.

Perfect Fit for Automation: 22320 CK W33 C3 Bearing
22320 CK W33 C3 Bearing works well in robotic assembly lines, where its precision and durability reduce maintenance needs. The open design allows for easy relubrication, extending service life in continuous operations.
