22319 EJA/C4LVA407 Double Row Spherical Roller Bearing

Brand: TFL Bearing Interchangeable: SKF 22319 EJA/C4LVA407 95 x 200 x 67 mm Metric Open
Part number: 22319 EJA/C4LVA407
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia95 mm
Bore Dia Tolerance-0.02mm to 0
Outer Dia200 mm
Outer Dia Tolerance-0.030mm to 0
Width67 mm
Width Tolerance-0.08mm to 0
Shoulder Dia Of Inner Ring118 mm
Shoulder/Recess Dia Of Outer Ring168 mm
Width Of Lubrication Groove11.1 mm
Diameter Of Lubrication Hole6 mm
Chamfer Dimensionmin.3 mm
Performance
Dynamic Radial Load157,141 lbf
Static Radial Load171,979 lbf
Max Speed3,400 rpm
Temperature Range-30° to 200 °C
Characteristics
System of MeasurementMetric
Radial run-outStandard
Bearing TypeRoller
Roller Bearing TypeSpherical
Bore TypeCylindrical
For Load DirectionCombined
ConstructionDouble Row
Seal TypeOpen
LubricationRequired
Radial ClearanceC4
Weight10 kg
Material
Ring MaterialChrome Steel
Roller MaterialChrome Steel
Cage MaterialBrass
Compliance
RoHsCompliant
REACHCompliant

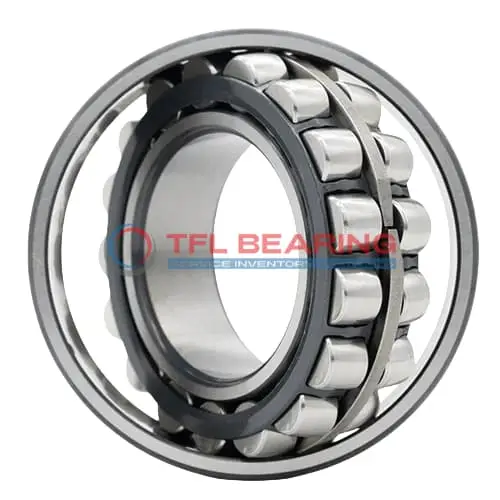

Product photo
22319 EJA/C4LVA407 Double Row Spherical Roller Bearing

Description

The 22319 EJA/C4LVA407 is a double-row spherical roller bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 157141 lbf and operates smoothly at speeds up to 3400 RPM.

Its brass cage enhances durability, while the open design allows easy lubrication through the 6mm holes. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C4 radial clearance, it accommodates slight misalignments, making it suitable for heavy machinery. The 11.1mm lubrication groove ensures consistent performance under demanding conditions.

This model is interchangeable with SKF bearings, ideal for industrial applications like gearboxes or conveyors. Weighing 10kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe usage.

Features

Performance Features of 22319 EJA/C4LVA407 Bearing

22319 EJA/C4LVA407 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 157141 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 3400 rpm, it delivers both durability and efficiency.

22319 EJA/C4LVA407 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its C4 radial clearance allows for thermal expansion, maintaining performance under stress.

The double-row spherical design compensates for misalignment, ensuring smooth operation.
Lubrication grooves and holes facilitate easy maintenance, reducing downtime.

22319 EJA/C4LVA407 Bearing’s cylindrical bore simplifies installation, saving time and effort.
Its open design allows for easy inspection and re-lubrication when needed.

Application

Industrial Uses of 22319 EJA/C4LVA407 Bearing
The 22319 EJA/C4LVA407 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effectively. Its brass cage ensures smooth operation even under high stress.

In automotive applications, 22319 EJA/C4LVA407 Bearing supports large drivetrain components, such as differentials and axles, due to its high radial load capacity. The C4 clearance allows for thermal expansion in demanding conditions.

For industrial fans and blowers, 22319 EJA/C4LVA407 Bearing’s spherical rollers accommodate misalignment, reducing wear and extending service life. The chrome steel construction also resists corrosion in harsh environments.

Where Is 22319 EJA/C4LVA407 Bearing Used?
You’ll often find 22319 EJA/C4LVA407 Bearing in mining equipment, where its robust design withstands heavy loads and vibrations. The open seal type simplifies lubrication in dusty conditions.

In paper mills, 22319 EJA/C4LVA407 Bearing ensures reliable performance in rollers and dryers, thanks to its high-temperature tolerance. The metric sizing makes it easy to replace in European machinery.

Built for Heavy-Duty Use: 22319 EJA/C4LVA407 Bearing
22319 EJA/C4LVA407 Bearing excels in construction equipment like cranes and excavators, where its dynamic load rating ensures durability. The spherical rollers also compensate for shaft deflections.

In wind turbines, 22319 EJA/C4LVA407 Bearing’s ability to handle combined loads makes it ideal for gearbox applications. The brass cage reduces friction, enhancing efficiency in long-term use.

Automotive vs Aerospace: Applications of 22319 EJA/C4LVA407 Bearing
In automotive systems, 22319 EJA/C4LVA407 Bearing supports heavy axles and transmissions, while in aerospace, it’s used in auxiliary gearboxes. The high-speed capability suits both industries well.

For industrial pumps, 22319 EJA/C4LVA407 Bearing’s spherical rollers manage misalignment, ensuring smooth operation. The C4 clearance accommodates thermal changes in continuous-duty scenarios.
