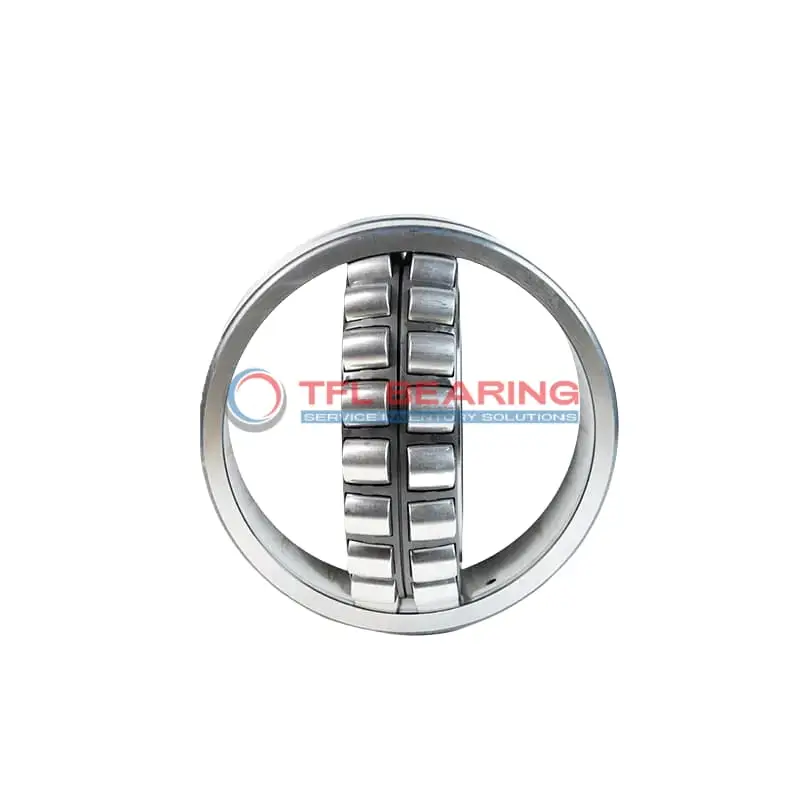

22317 CKJ C3 Double Row Spherical Roller Bearing

22317 CKJ C3 Double Row Spherical Roller Bearing

The 22317 CKJ C3 is a double-row spherical roller bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 129715 lbf and operates smoothly at speeds up to 3800 RPM.

Its open design and tapered bore ensure easy mounting, while the steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 7.3kg, it’s built to handle demanding conditions. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22317 CKJ C3
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 180 x 60 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 60 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 108 mm
  • Shoulder/Recess Dia Of Outer Ring 154 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 129715 lbf
  • Static Radial Load 139382 lbf
  • Max Speed 3800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 7.3 kg
  • Price （US$） 88.74

Features

Performance Features of 22317 CKJ C3 Bearing

22317 CKJ C3 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 129715 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 3800 rpm, it maintains efficiency even under demanding conditions.

22317 CKJ C3 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
The C3 radial clearance provides optimal performance under thermal expansion and heavy loads.

Application

Industrial Uses of 22317 CKJ C3 Bearing
22317 CKJ C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction ensures smooth operation even with slight misalignments.

Where Is 22317 CKJ C3 Bearing Used?
You’ll find 22317 CKJ C3 Bearing in industrial fans and pumps, where its high dynamic load capacity keeps things running smoothly. The tapered bore design also makes installation and adjustment a breeze.

Built for Heavy-Duty Use: 22317 CKJ C3 Bearing
22317 CKJ C3 Bearing excels in mining equipment, thanks to its robust chrome steel rollers and steel cage. The C3 radial clearance allows for thermal expansion in high-temperature environments.

Automotive vs Aerospace: Applications of 22317 CKJ C3 Bearing
In automotive applications, 22317 CKJ C3 Bearing supports gearboxes and drivetrains, while in aerospace, it’s used in auxiliary systems. Its metric sizing ensures compatibility across various industries.

Perfect Fit for Automation: 22317 CKJ C3 Bearing
22317 CKJ C3 Bearing is ideal for conveyor systems in automated factories, where its durability reduces downtime. The open design simplifies lubrication, extending service life.
