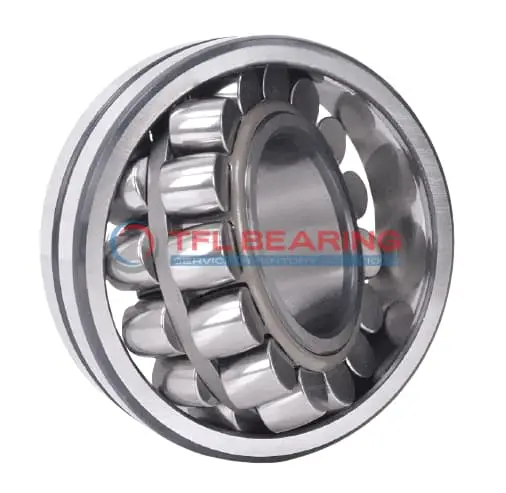

22316 EK/C3 Double Row Spherical Roller Bearing

22316 EK/C3 Double Row Spherical Roller Bearing

The 22316 EK/C3 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and C3 radial clearance allow for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 6.25kg, it’s built to withstand demanding conditions while complying with RoHS and REACH standards for safety.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 EK/C3
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 115.79

Features

Performance Features of 22316 EK/C3 Bearing

22316 EK/C3 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design accommodates misalignment, reducing stress and wear.
With a maximum speed of 4000 rpm, it maintains efficiency even under demanding conditions.

22316 EK/C3 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial environments.
The C3 radial clearance provides flexibility, enhancing performance under thermal expansion.

Steel cage construction ensures proper roller alignment, extending the bearing’s service life.
Regular lubrication is recommended to maintain optimal performance and reduce friction.

Application

Industrial Uses of 22316 EK/C3 Bearing
22316 EK/C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps compensate for misalignment, reducing wear in demanding environments.

Where Is 22316 EK/C3 Bearing Used?
In mining equipment, 22316 EK/C3 Bearing supports rotating components like conveyor pulleys, ensuring reliable performance under extreme conditions. Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature applications.

Built for Heavy-Duty Use: 22316 EK/C3 Bearing
22316 EK/C3 Bearing excels in paper mill machinery, where its chrome steel rollers withstand constant moisture and heavy loads. The tapered bore design ensures a secure fit on shafts, preventing slippage during operation.

Automotive vs Aerospace: Applications of 22316 EK/C3 Bearing
In automotive gearboxes, 22316 EK/C3 Bearing provides smooth power transmission, while in aerospace, its high-speed capability suits auxiliary systems. The steel cage offers durability in both sectors, though lubrication needs vary.

Key Fields for 22316 EK/C3 Bearing
Wind turbine generators rely on 22316 EK/C3 Bearing for its ability to handle variable loads and misalignment. The open design simplifies maintenance, crucial for remote installations where downtime must be minimised.
