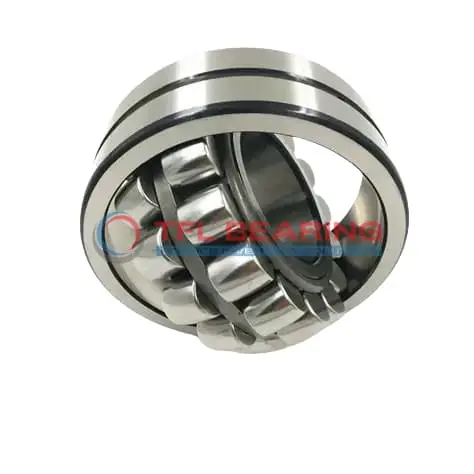

22316 E Double Row Spherical Roller Bearing

22316 E Double Row Spherical Roller Bearing

The 22316 E is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes make maintenance straightforward. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 6.25kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 E
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 115.79

Features

Performance Features of 22316 E Bearing

22316 E Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 4000 rpm, it maintains efficiency even under demanding conditions.

22316 E Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The steel cage ensures roller alignment, enhancing durability and extending service life.

Application

Industrial Uses of 22316 E Bearing
The 22316 E Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its chrome steel construction ensures durability even in harsh operating conditions, making it a reliable choice for mining and construction equipment.

Where Is 22316 E Bearing Used?
You’ll often find 22316 E Bearing in gearboxes and industrial fans, where its high load capacity and speed rating improve performance.
The open seal design allows for easy lubrication, which is essential in high-temperature environments.

Built for Heavy-Duty Use: 22316 E Bearing
22316 E Bearing excels in paper mill machinery, where its spherical roller design compensates for misalignment.
The steel cage provides added strength, ensuring long service life even under continuous operation.

Automotive vs Aerospace: Applications of 22316 E Bearing
In automotive applications, 22316 E Bearing supports heavy axles and transmissions, thanks to its robust load-bearing capacity.
For aerospace, its high-temperature tolerance makes it suitable for auxiliary power units and landing gear systems.

Practical Applications of 22316 E Bearing
22316 E Bearing is ideal for wind turbines, where its ability to handle misalignment and heavy loads is crucial.
The metric sizing ensures compatibility with a wide range of industrial equipment across different regions.
