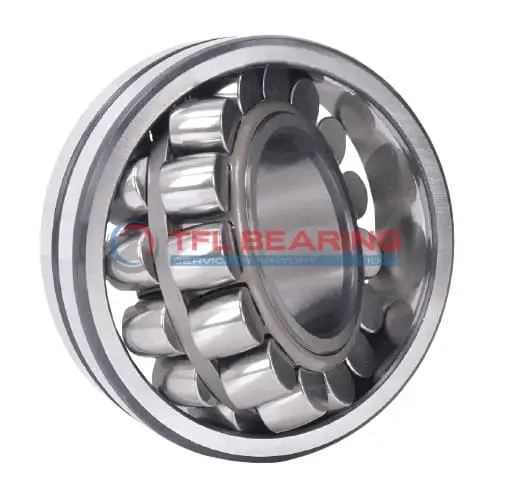

22316 E/C4 Double Row Spherical Roller Bearing

22316 E/C4 Double Row Spherical Roller Bearing

The 22316 E/C4 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.
Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.
With a C4 radial clearance, it accommodates slight misalignments, making it versatile for various setups. This model is interchangeable with SKF bearings, offering a practical replacement option.
Ideal for heavy-duty applications like industrial gearboxes or mining equipment, where robust performance is essential. Weighing 6.25kg, it’s built to handle demanding conditions while maintaining stability. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 E/C4
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 115.79

Features

Performance Features of 22316 E/C4 Bearing

22316 E/C4 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

22316 E/C4 Bearing operates efficiently within a temperature range of -30° to 200°C.
Its steel cage maintains roller alignment, ensuring smooth operation at speeds up to 4000 rpm.

With a C4 radial clearance, 22316 E/C4 Bearing accommodates thermal expansion in high-temperature environments.
The lubrication groove and holes facilitate easy maintenance, keeping performance consistent.

The open design of 22316 E/C4 Bearing simplifies installation and inspection.
Its robust construction reduces maintenance needs, making it a cost-effective choice for industrial applications.

Application

Industrial Uses of 22316 E/C4 Bearing
22316 E/C4 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effectively. The spherical roller construction allows for slight misalignment, making it reliable in demanding environments.

Where Is 22316 E/C4 Bearing Used?
You’ll often find 22316 E/C4 Bearing in conveyor systems and gearboxes, where its high dynamic load capacity ensures long service life. The open design simplifies lubrication, which is essential for continuous operation.

Built for Heavy-Duty Use: 22316 E/C4 Bearing
22316 E/C4 Bearing excels in applications like wind turbines and mining equipment, thanks to its robust chrome steel construction. The C4 radial clearance provides flexibility in high-temperature conditions.

Automotive vs Aerospace: Applications of 22316 E/C4 Bearing
In automotive settings, 22316 E/C4 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems. Its versatility comes from the ability to handle combined loads and high speeds.

Perfect Fit for Automation: 22316 E/C4 Bearing
22316 E/C4 Bearing is ideal for robotic arms and automated assembly lines, where precision and durability are key. The steel cage ensures stability even under repetitive motion.
