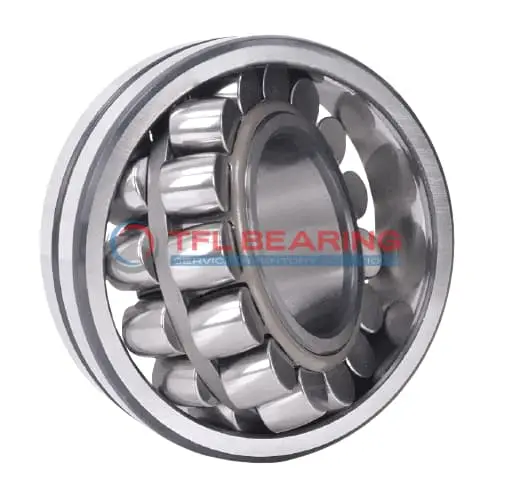

22316 E/C3 Double Row Spherical Roller Bearing

22316 E/C3 Double Row Spherical Roller Bearing

The 22316 E/C3 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 6.25kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 E/C3
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 115.79

Features

Performance Features of 22316 E/C3 Bearing

22316 E/C3 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, making it suitable for heavy-duty applications.
The double-row spherical roller design ensures smooth operation even under misalignment conditions.

How Is 22316 E/C3 Bearing Engineered for Reliability?

22316 E/C3 Bearing features a steel cage that maintains roller alignment, reducing friction and wear.
With a maximum speed of 4000 rpm, it delivers reliable performance in high-speed environments.
The C3 radial clearance allows for thermal expansion, ensuring stability in varying temperatures.

Built for Durability: 22316 E/C3 Bearing

22316 E/C3 Bearing’s chrome steel construction provides excellent resistance to wear and fatigue.
Its static radial load capacity of 119149 lbf ensures long-term reliability in demanding conditions.
The lubrication groove and holes facilitate easy maintenance, extending the bearing’s service life.

What Makes 22316 E/C3 Bearing Suitable for High-Temperature Applications?

22316 E/C3 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The chrome steel materials and C3 clearance ensure performance stability under thermal stress.
Its robust design handles combined loads, making it ideal for industrial and heavy machinery use.

Steel vs Ceramic Bearings: Strengths of 22316 E/C3 Bearing

22316 E/C3 Bearing’s chrome steel rollers and rings provide superior strength and durability.
The steel cage enhances load distribution, reducing stress and prolonging operational life.
With a weight of 6.25 kg, it balances robustness and practicality for industrial applications.

Application

Industrial Uses of 22316 E/C3 Bearing
22316 E/C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, reducing wear in demanding environments.

Where Is 22316 E/C3 Bearing Used?
In mining equipment, 22316 E/C3 Bearing supports rotating shafts in conveyors and separators, thanks to its high dynamic load capacity. The C3 radial clearance ensures reliable performance even under thermal expansion.

Built for Heavy-Duty Use: 22316 E/C3 Bearing
22316 E/C3 Bearing excels in paper mill machinery, where its chrome steel rollers withstand constant moisture and heavy loads. The open design simplifies lubrication, extending service life in harsh conditions.

Automotive vs Aerospace: Applications of 22316 E/C3 Bearing
In automotive drivetrains, 22316 E/C3 Bearing manages combined loads in gearboxes, while its high-temperature tolerance makes it suitable for aerospace auxiliary systems. The steel cage adds durability in both sectors.

Key Fields for 22316 E/C3 Bearing
22316 E/C3 Bearing is ideal for wind turbine gearboxes, where its spherical rollers compensate for shaft deflection. The metric dimensions ensure easy integration with European-designed renewable energy systems.
