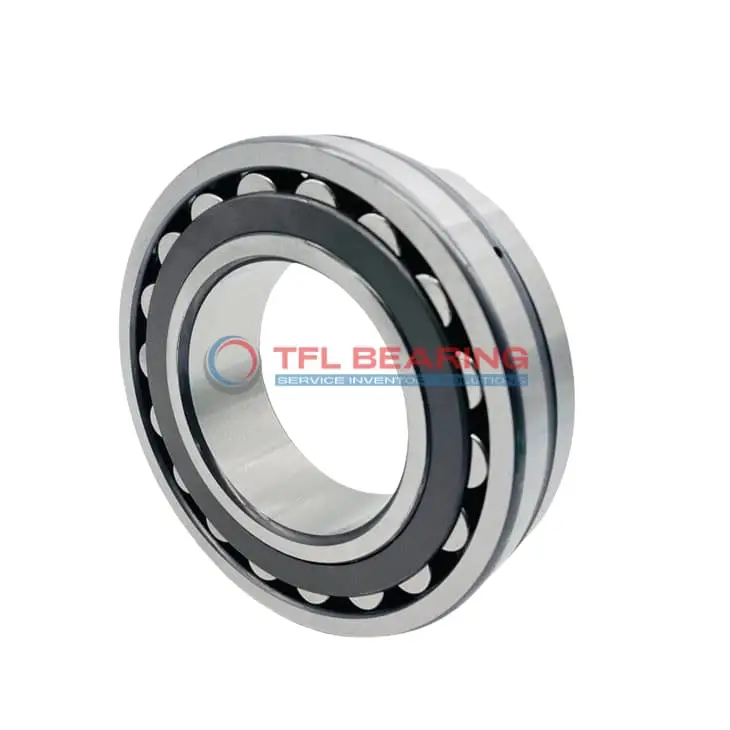

22316 CKY Double Row Spherical Roller Bearing

22316 CKY Double Row Spherical Roller Bearing

The 22316 CKY is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 116001 lbf and runs smoothly at speeds up to 4000 RPM.

Its brass cage and open design ensure durability and easy lubrication, with a temperature range from -30°C to 200°C. The tapered bore (1:12) allows for secure fitting on shafts.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 6.25kg, it’s built to last while handling tough conditions. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 CKY
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance +0.03mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 91.08

Features

Why Choose 22316 CKY Bearing for Precision Tasks?

22316 CKY Bearing features a double-row spherical roller design, ideal for handling combined loads with precision.
Its chrome steel construction ensures durability, while the brass cage maintains roller alignment for smooth operation.

The bearing’s dynamic radial load capacity of 116001 lbf makes it suitable for heavy-duty applications.
With a maximum speed of 4000 rpm, it delivers reliable performance in demanding conditions.

22316 CKY Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its tapered bore design simplifies installation, reducing setup time and effort.

The lubrication groove and holes ensure consistent performance, even under continuous use.
This design minimises maintenance needs, making it a cost-effective choice for industrial applications.

Application

Industrial Uses of 22316 CKY Bearing
The 22316 CKY Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment effortlessly. Its brass cage ensures smooth operation even under high radial loads.

What Makes 22316 CKY Bearing a Preferred Choice?
In mining equipment, 22316 CKY Bearing’s tapered bore provides a secure fit for high-vibration applications. The chrome steel rollers offer durability, making it ideal for harsh environments.

Built for Heavy-Duty Use: 22316 CKY Bearing
For wind turbines, 22316 CKY Bearing’s combined load capacity and temperature tolerance ensure reliable performance. Its open design simplifies lubrication, extending service life in remote installations.

Automotive vs Aerospace: Applications of 22316 CKY Bearing
In truck transmissions, 22316 CKY Bearing handles heavy loads with ease, while its precision suits helicopter rotor systems. The metric sizing ensures compatibility across global designs.

Perfect Fit for Automation: 22316 CKY Bearing
22316 CKY Bearing works well in robotic arms, where its spherical rollers accommodate slight misalignments during movement. The brass cage reduces friction, enhancing efficiency in repetitive tasks.
