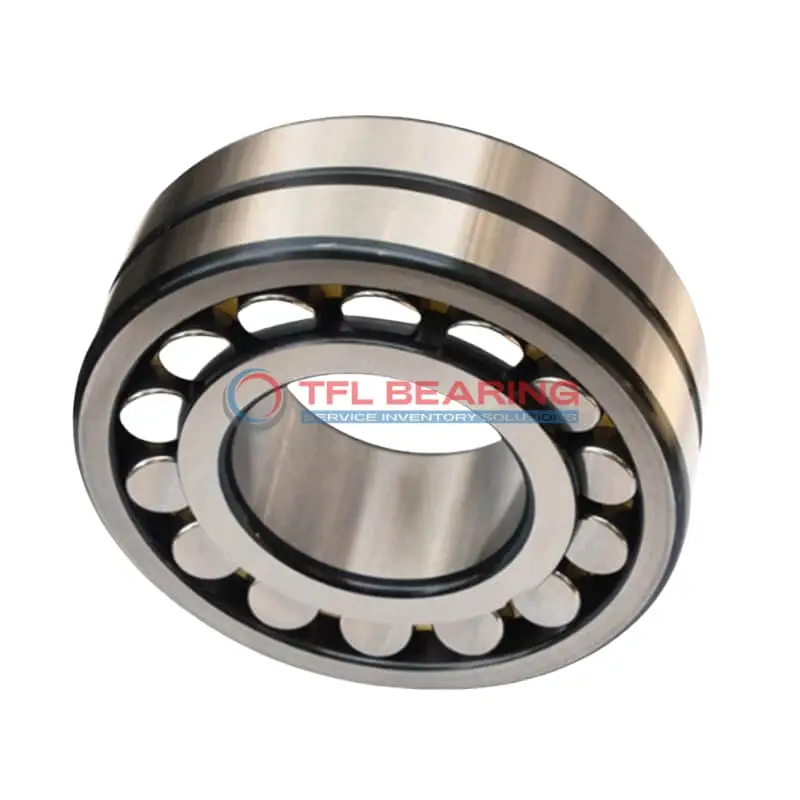

22316 CJ C1 W33 Double Row Spherical Roller Bearing

22316 CJ C1 W33 Double Row Spherical Roller Bearing

The 22316 CJ C1 W33 is a double-row spherical roller bearing with an 80mm bore and 170mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 116001 lbf and operates smoothly at speeds up to 4000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or mining equipment, where high radial loads and misalignment are common. It works in temperatures from -30°C to 200°C.

Weighing 6.25kg, it’s built for reliability. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22316 CJ C1 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 170 x 58 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 58 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 98.3 mm
  • Shoulder/Recess Dia Of Outer Ring 143 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 116001 lbf
  • Static Radial Load 119149 lbf
  • Max Speed 4000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C1
  • RoHs Compliant
  • REACH Compliant
  • Weight 6.25 kg
  • Price （US$） 98.1

Features

Performance Features of 22316 CJ C1 W33 Bearing

22316 CJ C1 W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 116001 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 4000 rpm, it delivers reliable performance in various industrial settings.

22316 CJ C1 W33 Bearing features a steel cage that maintains roller alignment, reducing wear.
The lubrication groove and holes facilitate easy maintenance, extending the bearing’s service life.

Designed for temperatures ranging from -30° to 200°C, it performs well in extreme conditions.
Its C1 radial clearance provides optimal fit and performance for precision applications.

Application

Industrial Uses of 22316 CJ C1 W33 Bearing
22316 CJ C1 W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

What Makes 22316 CJ C1 W33 Bearing a Preferred Choice?
In automotive applications, 22316 CJ C1 W33 Bearing supports components like axle systems, thanks to its high dynamic load capacity. The steel cage and chrome steel rollers provide durability even under demanding conditions.

Perfect Fit for Automation: 22316 CJ C1 W33 Bearing
For automated production lines, 22316 CJ C1 W33 Bearing offers reliable performance in robotic arms and conveyor systems. Its C1 radial clearance ensures precise movement, while the lubrication groove extends service life.

Light-Duty vs Heavy-Duty: Best Uses for 22316 CJ C1 W33 Bearing
In light-duty scenarios like fans, 22316 CJ C1 W33 Bearing provides quiet operation, while in heavy-duty settings like mining equipment, it excels with its robust construction. The wide temperature range makes it versatile for various environments.

Where Is 22316 CJ C1 W33 Bearing Used?
Medical imaging devices benefit from 22316 CJ C1 W33 Bearing’s smooth rotation and low vibration. The chrome steel material ensures hygiene and longevity, making it suitable for sensitive medical environments.
