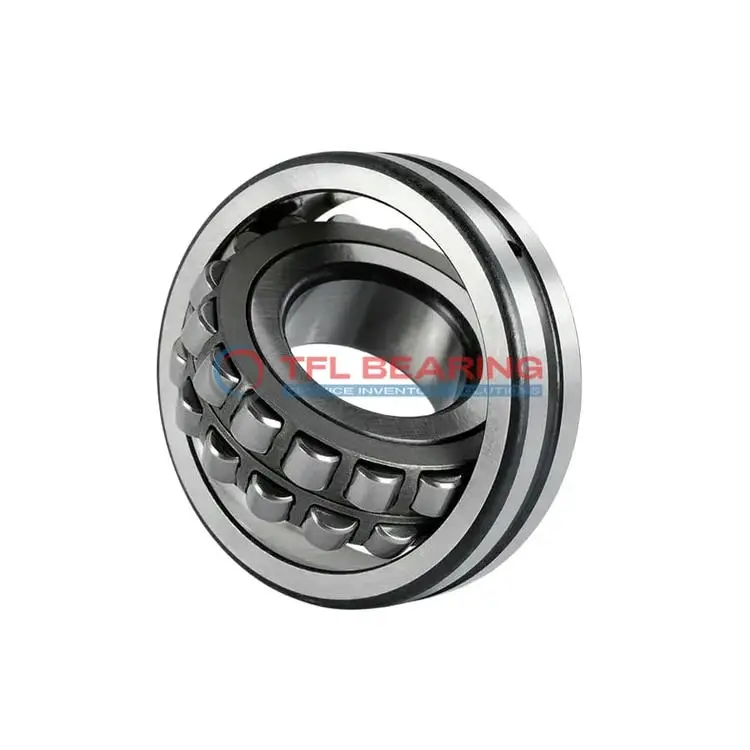

22314C CJ W33 Double Row Spherical Roller Bearing

22314C CJ W33 Double Row Spherical Roller Bearing

The 22314C CJ W33 is a double-row spherical roller bearing with a 70mm bore and 150mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 92846 lbf and runs smoothly at speeds up to 4500 RPM.

Its spherical roller design compensates for misalignment, while the steel cage ensures durability. The open construction allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing operates in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for heavy machinery like gearboxes or industrial equipment where high radial loads and misalignment are common. Weighing 4.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22314C CJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 70 x 150 x 51 mm
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 90.3 mm
  • Shoulder/Recess Dia Of Outer Ring 128 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 92846 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.3 kg
  • Price （US$） 70.02

Features

How Is 22314C CJ W33 Bearing Engineered for Reliability?

22314C CJ W33 Bearing features a double-row spherical roller design, ideal for handling combined radial and thrust loads.
Its chrome steel construction ensures durability, even under dynamic radial loads up to 92,846 lbf.

The lubrication groove and holes in 22314C CJ W33 Bearing allow for efficient grease distribution, reducing wear.
With a maximum speed of 4,500 rpm, it maintains smooth operation in demanding conditions.

22314C CJ W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
Its steel cage keeps rollers aligned, enhancing stability and extending service life.

Application

Industrial Uses of 22314C CJ W33 Bearing
22314C CJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, reducing wear in demanding environments.

Where Is 22314C CJ W33 Bearing Used?
In mining equipment, 22314C CJ W33 Bearing supports high loads and shock resistance, ensuring reliable performance in harsh conditions. Its lubrication groove design also simplifies maintenance, extending service life.

Built for Heavy-Duty Use: 22314C CJ W33 Bearing
22314C CJ W33 Bearing excels in paper mill machinery, where its chrome steel rollers withstand constant friction and high temperatures. The open seal design allows for easy re-greasing, keeping operations smooth.

Automotive vs Aerospace: Applications of 22314C CJ W33 Bearing
In automotive applications, 22314C CJ W33 Bearing is found in gearboxes and drivetrains, offering durability under combined loads. For aerospace, its high-speed capability makes it suitable for auxiliary systems requiring precision.

Essential Roles of 22314C CJ W33 Bearing
22314C CJ W33 Bearing is vital in wind turbines, where its ability to handle dynamic loads ensures consistent energy production. The steel cage provides extra strength, making it a dependable choice for renewable energy systems.
