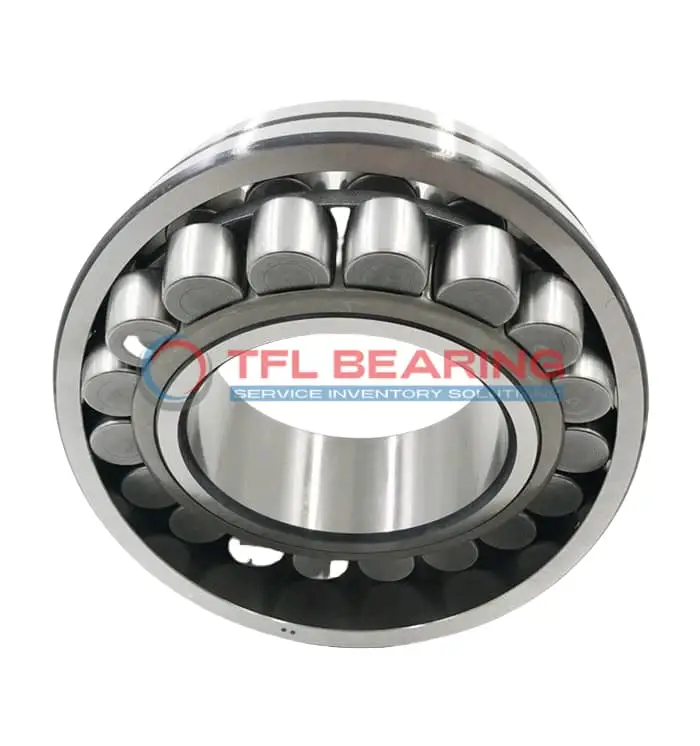

22314 E/C2 Double Row Spherical Roller Bearing

22314 E/C2 Double Row Spherical Roller Bearing

The 22314 E/C2 is a double-row spherical roller bearing with a 70mm bore and 150mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 92846 lbf and operates smoothly at speeds up to 4500 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes simplify maintenance. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C2 radial clearance, it offers flexibility in applications where slight misalignment might occur. Ideal for heavy machinery, industrial gearboxes, or construction equipment.

Weighing 4.3kg, it’s built for demanding environments. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22314 E/C2
  • Brand TFL
  • Interchangeable SKF
  • Size 70 x 150 x 51 mm
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 51 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 90.3 mm
  • Shoulder/Recess Dia Of Outer Ring 128 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 92846 lbf
  • Static Radial Load 96668 lbf
  • Max Speed 4500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C2
  • RoHs Compliant
  • REACH Compliant
  • Weight 4.3 kg
  • Price （US$） 98.81

Features

Performance Features of 22314 E/C2 Bearing

22314 E/C2 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 92,846 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 4,500 rpm, it delivers reliable performance in demanding environments.

22314 E/C2 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its C2 radial clearance provides optimal performance for various industrial applications.

The steel cage maintains roller alignment, reducing wear and extending service life.
Lubrication grooves and holes ensure consistent performance with minimal maintenance.

Application

Industrial Uses of 22314 E/C2 Bearing
22314 E/C2 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction helps accommodate misalignment, reducing wear in demanding conditions.

Where Is 22314 E/C2 Bearing Used?
You’ll often find 22314 E/C2 Bearing in industrial fans and gearboxes, where its high dynamic load capacity ensures reliable performance. The open design allows for easy lubrication, extending service life in continuous operation.

Built for Heavy-Duty Use: 22314 E/C2 Bearing
22314 E/C2 Bearing excels in mining equipment, where its robust construction withstands harsh environments. The chrome steel rollers and steel cage provide durability under heavy loads and high speeds.

Automotive vs Aerospace: Applications of 22314 E/C2 Bearing
In automotive applications, 22314 E/C2 Bearing supports drivetrain components, offering stability under combined loads. For aerospace, its high-temperature tolerance makes it suitable for auxiliary systems requiring precision and reliability.

Practical Applications of 22314 E/C2 Bearing
22314 E/C2 Bearing is ideal for paper mill machinery, where its C2 radial clearance accommodates thermal expansion. The lubrication groove design ensures smooth operation even in dusty or humid conditions.
