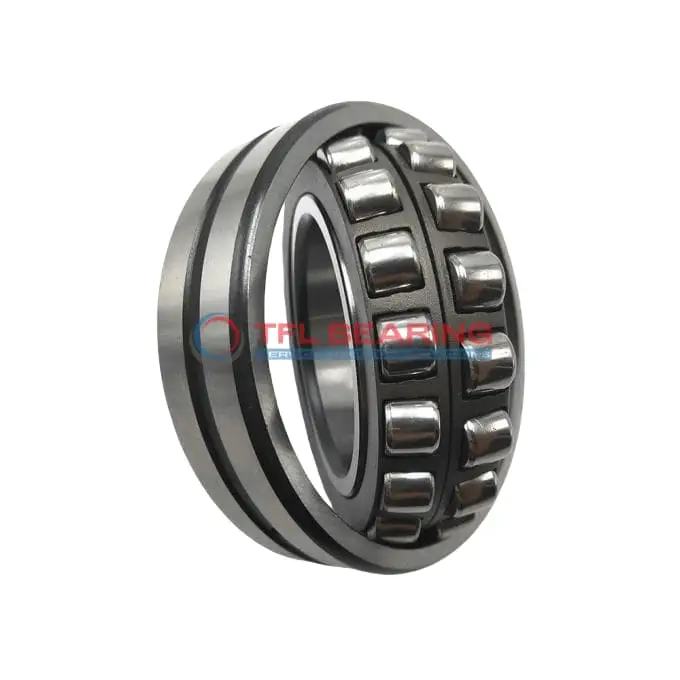

22312C Double Row Spherical Roller Bearing

22312C Double Row Spherical Roller Bearing

The 22312C is a double-row spherical roller bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 73063 lbf and runs smoothly at speeds up to 5300 RPM.

Its open design and steel cage ensure durability, while the lubrication groove and holes make maintenance straightforward. The bearing operates well in temperatures from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 2.95kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22312C
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 130 x 46 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 77.9 mm
  • Shoulder/Recess Dia Of Outer Ring 110 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73063 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 5300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.95 kg
  • Price （US$） 58.5

Features

Performance Features of 22312C Bearing

22312C Bearing is crafted with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 73063 lbf, ensuring dependable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends operational life in challenging conditions.

With a maximum speed of 5300 rpm, 22312C Bearing balances high performance and reliability.
The steel cage maintains roller alignment, minimising wear and ensuring smooth operation.

22312C Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design simplifies lubrication, making maintenance straightforward and cost-effective.

Application

Industrial Uses of 22312C Bearing
22312C Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in harsh operating conditions.

Where Is 22312C Bearing Used?
You’ll often find 22312C Bearing in conveyor systems and gearboxes, where its high load capacity and speed rating keep operations running smoothly. The open design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 22312C Bearing
22312C Bearing excels in mining equipment and construction machinery, thanks to its robust spherical roller design. The wide temperature range makes it suitable for both hot and cold environments.

Automotive vs Aerospace: Applications of 22312C Bearing
In automotive applications, 22312C Bearing supports heavy axles and transmissions, while in aerospace, it’s used in auxiliary systems requiring reliable performance. Its metric sizing ensures compatibility across industries.

Perfect Fit for Automation: 22312C Bearing
22312C Bearing is ideal for robotic arms and automated assembly lines, where precision and load capacity are key. The steel cage provides added strength for continuous operation.
