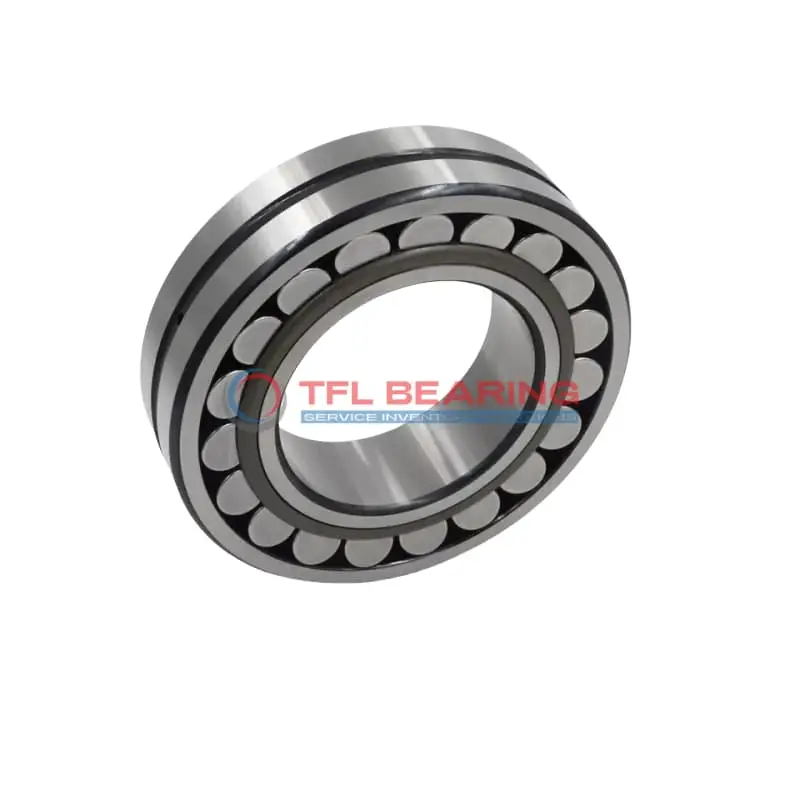

22312 CJ Double Row Spherical Roller Bearing

22312 CJ Double Row Spherical Roller Bearing

The 22312 CJ is a double-row spherical roller bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 73063 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 2.95kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22312 CJ
  • Brand TFL
  • Interchangeable SKF
  • Size 60 x 130 x 46 mm
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 46 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 77.9 mm
  • Shoulder/Recess Dia Of Outer Ring 110 mm
  • Width Of Lubrication Groove 8.3 mm
  • Diameter Of Lubrication Hole 4.5 mm
  • Chamfer Dimension min.2.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 73063 lbf
  • Static Radial Load 75311 lbf
  • Max Speed 5300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.95 kg
  • Price （US$） 58.5

Features

Performance Features of 22312 CJ Bearing

22312 CJ Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 73063 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining smooth performance.
With a maximum speed of 5300 rpm, it balances efficiency and durability under demanding conditions.

22312 CJ Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Application

Industrial Uses of 22312 CJ Bearing
22312 CJ Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The chrome steel construction ensures durability even in demanding industrial environments.

What Makes 22312 CJ Bearing a Preferred Choice?
With a high dynamic radial load capacity, 22312 CJ Bearing is ideal for applications like gearboxes and wind turbines. Its spherical roller design accommodates misalignment, reducing wear and tear over time.

Built for Heavy-Duty Use: 22312 CJ Bearing
22312 CJ Bearing excels in mining equipment, where its robust construction withstands extreme loads and harsh conditions. The steel cage provides additional strength, making it reliable for long-term use.

Automotive vs Aerospace: Applications of 22312 CJ Bearing
In automotive systems, 22312 CJ Bearing supports heavy axles and transmissions, while in aerospace, it’s used in auxiliary systems requiring high precision. Its temperature range suits both environments well.

Perfect Fit for Automation: 22312 CJ Bearing
22312 CJ Bearing is a great match for robotic arms and conveyor systems in automated factories. The open seal design allows for easy lubrication, ensuring smooth operation in high-speed settings.
