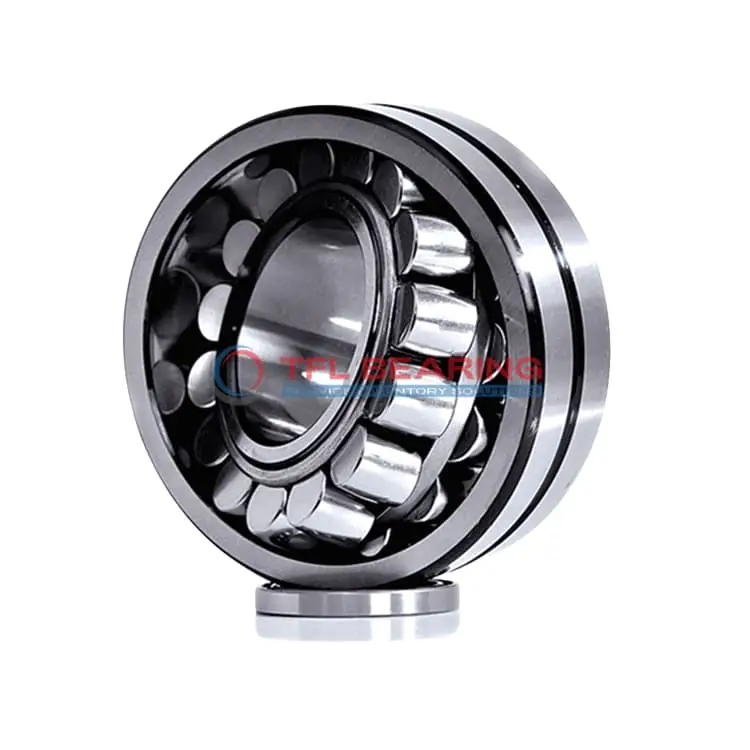

22310 KM W33 Double Row Spherical Roller Bearing

22310 KM W33 Double Row Spherical Roller Bearing

The 22310 KM W33 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 51256 lbf and operates smoothly at speeds up to 6300 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability. The open structure allows for easy lubrication, with a 3mm hole for grease access.

This bearing works in temperatures from -30°C to 200°C, making it suitable for harsh environments. It’s interchangeable with SKF models, ideal for heavy machinery or industrial gearboxes.

Weighing 1.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22310 KM W33
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 110 x 40 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 63.9 mm
  • Shoulder/Recess Dia Of Outer Ring 91.9 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51256 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.85 kg
  • Price （US$） 47.16

Features

Performance Features of 22310 KM W33 Bearing

22310 KM W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 51256 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, ensuring smooth operation.
With a maximum speed of 6300 rpm, it delivers reliable performance in high-speed conditions.

22310 KM W33 Bearing operates in temperatures from -30° to 200°C, adapting to various environments.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s lifespan.

Application

Industrial Uses of 22310 KM W33 Bearing
22310 KM W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller type also compensates for misalignment, ensuring smooth operation in demanding conditions.

What Makes 22310 KM W33 Bearing a Preferred Choice?
In mining equipment, 22310 KM W33 Bearing’s robust construction and lubrication groove extend service life, even in dusty environments. Its tapered bore allows for secure mounting on shafts, reducing slippage risks.

Perfect Fit for Automation: 22310 KM W33 Bearing
For conveyor systems, 22310 KM W33 Bearing’s high-speed capability and temperature resistance keep production lines running efficiently. The steel cage adds durability, making it suitable for continuous operation.

Automotive vs Aerospace: Applications of 22310 KM W33 Bearing
In trucks, 22310 KM W33 Bearing supports axles and transmissions, handling heavy loads with reliability. While in aerospace, its precision and heat tolerance make it useful for auxiliary equipment.

Where to Use 22310 KM W33 Bearing
22310 KM W33 Bearing fits well in wind turbines, where its spherical rollers manage variable loads and misalignment. The chrome steel material ensures long-term performance in harsh weather conditions.
