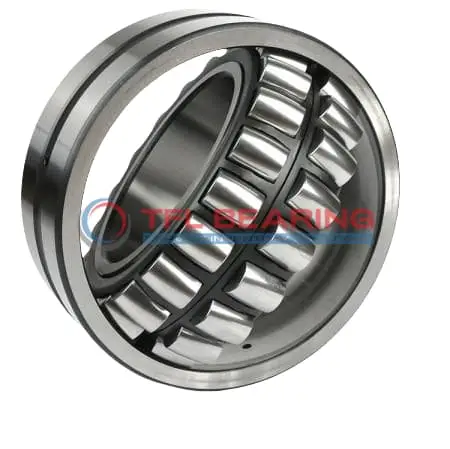

22310 CCKJ W33 Double Row Spherical Roller Bearing

22310 CCKJ W33 Double Row Spherical Roller Bearing

The 22310 CCKJ W33 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 51256 lbf and operates smoothly at speeds up to 6300 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment.

Weighing 1.85kg, it’s built to handle temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22310 CCKJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 110 x 40 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 63.9 mm
  • Shoulder/Recess Dia Of Outer Ring 91.9 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51256 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.85 kg
  • Price （US$） 50.4

Features

Performance Features of 22310 CCKJ W33 Bearing

22310 CCKJ W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51256 lbf, ensuring reliable operation in demanding conditions.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 6300 rpm, it maintains efficiency without compromising durability.

22310 CCKJ W33 Bearing operates in temperatures from -30° to 200°C, suitable for various industrial applications.
The lubrication groove and hole design ensure consistent performance, even under heavy use.

Application

Industrial Uses of 22310 CCKJ W33 Bearing
22310 CCKJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged environments.

In automotive applications, 22310 CCKJ W33 Bearing supports drivetrain components, particularly in commercial vehicles requiring high load capacity. Its tapered bore design simplifies installation, making it a favourite among mechanics.

For automation systems, 22310 CCKJ W33 Bearing’s high-speed capability (up to 6300 rpm) suits robotic arms and conveyor belts. The steel cage and chrome steel rollers provide durability even in continuous operation.

What Makes 22310 CCKJ W33 Bearing a Preferred Choice?
22310 CCKJ W33 Bearing stands out in wind turbines due to its ability to withstand radial and axial loads simultaneously. The lubrication groove ensures consistent performance, even in extreme temperatures (-30° to 200°C).

Built for Heavy-Duty Use: 22310 CCKJ W33 Bearing
In mining equipment, 22310 CCKJ W33 Bearing’s robust construction resists wear from abrasive materials. The open seal design allows for easy relubrication, extending service life in harsh conditions.
