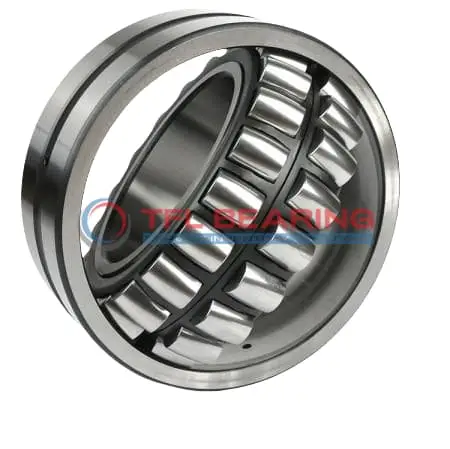

22310 CCK W33 C3 Double Row Spherical Roller Bearing

22310 CCK W33 C3 Double Row Spherical Roller Bearing

The 22310 CCK W33 C3 is a double-row spherical roller bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 51256 lbf and reaches speeds of 6300 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing operates in temperatures from -30°C to 200°C, suitable for demanding environments. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for heavy machinery or industrial gearboxes where high radial loads and misalignment are common. Weighing 1.85kg, it balances strength and practicality. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22310 CCK W33 C3
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 110 x 40 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance +0.025mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 40 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 63.9 mm
  • Shoulder/Recess Dia Of Outer Ring 91.9 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 51256 lbf
  • Static Radial Load 50357 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.85 kg
  • Price （US$） 50.4

Features

Performance Features of 22310 CCK W33 C3 Bearing

22310 CCK W33 C3 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 51256 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 6300 rpm, it delivers both durability and smooth operation.

22310 CCK W33 C3 Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The lubrication groove and holes ensure consistent performance, even under demanding conditions.

Application

Industrial Uses of 22310 CCK W33 C3 Bearing
22310 CCK W33 C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction adapts well to misalignment, ensuring reliable performance in tough conditions.

Where Is 22310 CCK W33 C3 Bearing Used?
In mining equipment, 22310 CCK W33 C3 Bearing supports rotating components like conveyor pulleys, thanks to its high dynamic load capacity. The C3 radial clearance also accommodates thermal expansion, making it suitable for high-temperature environments.

Built for Heavy-Duty Use: 22310 CCK W33 C3 Bearing
22310 CCK W33 C3 Bearing excels in wind turbine applications, where its tapered bore ensures secure mounting on shafts. The steel cage and chrome steel rollers provide durability, even under continuous operation at high speeds.

Automotive vs Aerospace: Applications of 22310 CCK W33 C3 Bearing
In automotive drivetrains, 22310 CCK W33 C3 Bearing manages combined loads in gearboxes, while in aerospace, it’s chosen for auxiliary systems requiring precision and reliability. The metric sizing fits seamlessly into both industries’ standards.

Practical Applications of 22310 CCK W33 C3 Bearing
For paper manufacturing machinery, 22310 CCK W33 C3 Bearing’s lubrication groove ensures smooth operation in dusty environments. Its open design allows for easy re-greasing, extending service life in demanding production lines.
