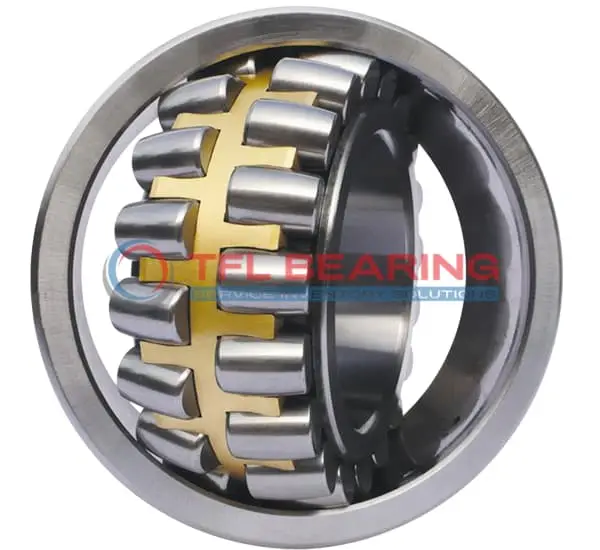

22256 CACM C3 Double Row Spherical Roller Bearing

22256 CACM C3 Double Row Spherical Roller Bearing

The 22256 CACM C3 is a double-row spherical roller bearing with a 280mm bore and 500mm outer diameter, built from robust chrome steel. It handles combined loads up to 628341 lbf and operates smoothly at speeds up to 1500 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a C3 radial clearance, it accommodates slight misalignments, making it suitable for heavy-duty applications. The lubrication groove and holes simplify maintenance.

Ideal for industrial machinery like crushers or gearboxes, this bearing is interchangeable with SKF models. Weighing 109kg, it’s designed for high-load scenarios where reliability is key. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22256 CACM C3
  • Brand TFL
  • Interchangeable SKF
  • Size 280 x 500 x 130 mm
  • Bore Dia 280 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 500 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 130 mm
  • Width Tolerance -0.1mm to 0
  • Shoulder Dia Of Inner Ring 333 mm
  • Shoulder/Recess Dia Of Outer Ring 441 mm
  • Width Of Lubrication Groove 22.3 mm
  • Diameter Of Lubrication Hole 12 mm
  • Chamfer Dimension min.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 628341 lbf
  • Static Radial Load 843034 lbf
  • Max Speed 1500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 109 kg
  • Price （US$） US$2,317.50

Features

How Is 22256 CACM C3 Bearing Engineered for Reliability?

22256 CACM C3 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high dynamic radial loads up to 628341 lbf.

The brass cage maintains roller alignment, reducing friction and extending operational life.
With a maximum speed of 1500 rpm, it delivers consistent performance in demanding conditions.

22256 CACM C3 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its open design allows for easy lubrication, ensuring smooth operation over time.

Application

Industrial Uses of 22256 CACM C3 Bearing
The 22256 CACM C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles combined loads effectively. Its brass cage ensures smooth operation even under high stress and misalignment conditions.

Where Is 22256 CACM C3 Bearing Used?
You’ll often find 22256 CACM C3 Bearing in mining equipment, where its high dynamic radial load capacity keeps operations running smoothly. The open design and lubrication grooves make maintenance straightforward in dusty environments.

Built for Heavy-Duty Use: 22256 CACM C3 Bearing
With a static radial load of 843034 lbf, 22256 CACM C3 Bearing is ideal for large industrial gearboxes and wind turbines. The chrome steel construction ensures durability, even in extreme temperatures up to 200°C.

Automotive vs Aerospace: Applications of 22256 CACM C3 Bearing
In automotive applications, 22256 CACM C3 Bearing supports heavy-duty axles and drivetrains, while in aerospace, it’s used in ground support equipment. Its C3 radial clearance allows for thermal expansion in varying operating conditions.

Perfect Fit for Automation: 22256 CACM C3 Bearing
The 22256 CACM C3 Bearing works well in automated production lines, particularly in robotic arms handling heavy payloads. Its spherical rollers compensate for shaft misalignment, ensuring consistent performance.
