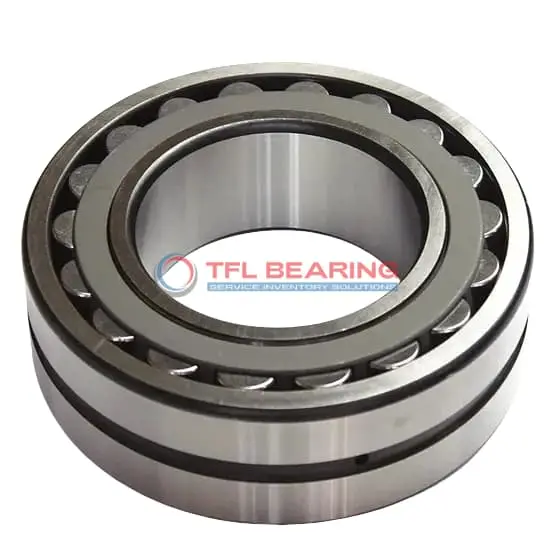

22236 W33 C3 Double Row Spherical Roller Bearing

22236 W33 C3 Double Row Spherical Roller Bearing

The 22236 W33 C3 is a double-row spherical roller bearing with a 180mm bore and 320mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 278089 lbf and runs smoothly at speeds up to 2600 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The bearing includes lubrication grooves and holes for easy maintenance.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are common.

Weighing 29.5kg, it’s built to last in temperatures from -30°C to 200°C. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22236 W33 C3
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 320 x 86 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 213 mm
  • Shoulder/Recess Dia Of Outer Ring 278 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 278089 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 29.5 kg
  • Price （US$） US$353.70

Features

How Does 22236 W33 C3 Bearing Handle Combined Loads?

22236 W33 C3 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 278089 lbf, ensuring reliable performance in heavy-duty applications.
The double-row spherical roller design accommodates misalignment, reducing stress and extending service life.
With a maximum speed of 2600 rpm, it maintains efficiency even under demanding conditions.

What Ensures Smooth Operation in 22236 W33 C3 Bearing?

22236 W33 C3 Bearing features a lubrication groove and hole, ensuring consistent oil distribution for smooth operation.
The chrome steel rollers and cage minimise friction, enhancing performance and reducing wear.
Its spherical roller design compensates for shaft misalignment, maintaining stability under load.
With a temperature range of -30° to 200°C, it performs reliably in varied environments.

Why Choose 22236 W33 C3 Bearing for Heavy-Duty Applications?

22236 W33 C3 Bearing’s robust construction handles static radial loads up to 350702 lbf, ideal for industrial use.
The steel cage ensures proper roller alignment, preventing premature wear and tear.
Its C3 radial clearance allows for thermal expansion, ensuring consistent performance.
Weighing 29.5 kg, it balances durability and ease of handling in large machinery.

Engineered for Reliability: 22236 W33 C3 Bearing

22236 W33 C3 Bearing’s double-row design distributes loads evenly, reducing stress on individual rollers.
The chrome steel materials resist wear, ensuring long-term durability in harsh conditions.
Its lubrication system maintains optimal performance, even at high speeds.
With a bore diameter of 180 mm, it suits large-scale industrial applications.

Steel vs Ceramic Bearings: Strengths of 22236 W33 C3 Bearing

22236 W33 C3 Bearing’s chrome steel construction provides superior strength and fatigue resistance.
The spherical rollers accommodate misalignment, reducing maintenance needs.
Its open design allows for easy lubrication, enhancing operational efficiency.
With a width of 86 mm, it offers a compact yet robust solution for heavy loads.

Application

Industrial Uses of 22236 W33 C3 Bearing
22236 W33 C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller type also accommodates misalignment, ensuring reliable performance in demanding conditions.

Where Is 22236 W33 C3 Bearing Used?
You’ll often find 22236 W33 C3 Bearing in mining equipment, where its robust construction withstands harsh environments. The lubrication groove and hole design make maintenance easier, even in remote locations.

Built for Heavy-Duty Use: 22236 W33 C3 Bearing
22236 W33 C3 Bearing excels in paper mill machinery, supporting large rollers under constant stress. Its chrome steel rollers and steel cage provide durability, while the C3 clearance allows for thermal expansion in high-temperature operations.

Automotive vs Aerospace: Applications of 22236 W33 C3 Bearing
In automotive applications, 22236 W33 C3 Bearing is used in large truck transmissions, handling combined loads efficiently. For aerospace, its high-speed capability makes it suitable for auxiliary power units, though weight considerations are key.

Practical Applications of 22236 W33 C3 Bearing
22236 W33 C3 Bearing is a go-to choice for wind turbine gearboxes, where its load capacity and reliability are critical. The wide temperature range ensures performance in varying climates, from cold winters to hot summers.
