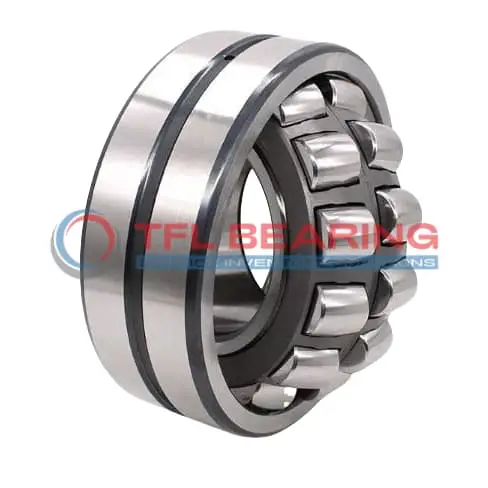

22236 CCK/HA3C4W33 Double Row Spherical Roller Bearing

22236 CCK/HA3C4W33 Double Row Spherical Roller Bearing

The 22236 CCK/HA3C4W33 is a double-row spherical roller bearing with a 180mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 278089 lbf and operates smoothly at speeds up to 2600 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 200°C, making it suitable for demanding environments.

With a tapered bore (1:12 ratio), it offers secure fitting and alignment. This model is interchangeable with SKF bearings, providing a reliable replacement option. Ideal for heavy machinery, industrial gearboxes, or applications requiring robust radial and axial load support.

Weighing 29.5kg, it’s built for heavy-duty use while complying with RoHS and REACH standards. The C4 radial clearance ensures flexibility in various operating conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22236 CCK/HA3C4W33
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 320 x 86 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance +0.04mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 213 mm
  • Shoulder/Recess Dia Of Outer Ring 278 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 278089 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 29.5 kg
  • Price （US$） US$1,166.36

Features

Performance Features of 22236 CCK/HA3C4W33 Bearing

22236 CCK/HA3C4W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 278089 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 2600 rpm, it maintains efficiency even under demanding conditions.

22236 CCK/HA3C4W33 Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The C4 radial clearance ensures smooth operation and reduces friction.

The steel cage keeps the rollers aligned, extending the bearing’s service life.
Its tapered bore design simplifies installation and ensures a secure fit.

Application

Industrial Uses of 22236 CCK/HA3C4W33 Bearing
The 22236 CCK/HA3C4W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. Its tapered bore ensures a secure fit, reducing slippage in demanding conditions.

What Makes 22236 CCK/HA3C4W33 Bearing a Preferred Choice?
In mining equipment, 22236 CCK/HA3C4W33 Bearing excels due to its robust chrome steel construction and C4 radial clearance, which accommodates thermal expansion. The lubrication groove design also extends service life in dusty environments.

Built for Heavy-Duty Use: 22236 CCK/HA3C4W33 Bearing
This bearing is ideal for paper mills and steel plants, where its spherical rollers compensate for misalignment. The high dynamic load capacity ensures reliable performance even under continuous operation.

Automotive vs Aerospace: Applications of 22236 CCK/HA3C4W33 Bearing
While not typical in aerospace, 22236 CCK/HA3C4W33 Bearing suits heavy vehicles like lorries, supporting axles and gearboxes. Its temperature range up to 200°C makes it adaptable to engine-adjacent components.

Essential Roles of 22236 CCK/HA3C4W33 Bearing
In wind turbines, 22236 CCK/HA3C4W33 Bearing’s self-aligning feature protects against shaft deflection. The steel cage and rollers provide durability against variable wind loads and long maintenance intervals.
