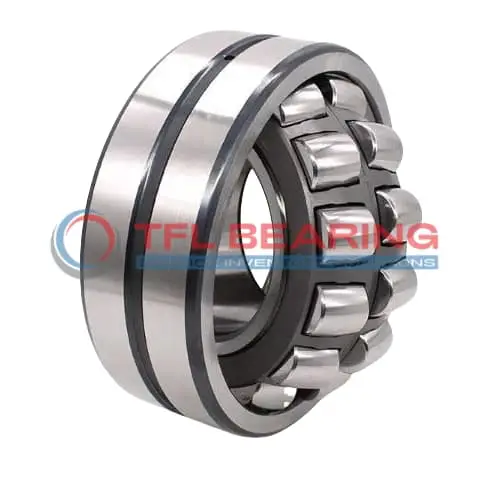

22236 CC/C5W33 Double Row Spherical Roller Bearing

22236 CC/C5W33 Double Row Spherical Roller Bearing

The 22236 CC/C5W33 is a double-row spherical roller bearing with a 180mm bore and 320mm outer diameter, built from tough chrome steel for durability. It handles combined loads up to 278089 lbf and runs smoothly at speeds up to 2600 RPM.

Its open design allows easy lubrication, with a 9mm hole and 16.7mm groove for maintenance. The steel cage and C5 radial clearance ensure reliable performance under heavy loads.

This bearing suits high-temperature environments, operating from -30°C to 200°C. It’s interchangeable with SKF models, making it a practical choice for replacements.

Ideal for industrial machinery like gearboxes or crushers, where heavy radial and axial loads are common. Weighing 29.5kg, it’s robust for demanding applications. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22236 CC/C5W33
  • Brand TFL
  • Interchangeable SKF
  • Size 180 x 320 x 86 mm
  • Bore Dia 180 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 320 mm
  • Outer Dia Tolerance -0.04mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 213 mm
  • Shoulder/Recess Dia Of Outer Ring 278 mm
  • Width Of Lubrication Groove 16.7 mm
  • Diameter Of Lubrication Hole 9 mm
  • Chamfer Dimension min.4 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 278089 lbf
  • Static Radial Load 350702 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C5
  • RoHs Compliant
  • REACH Compliant
  • Weight 29.5 kg

Features

Performance Features of 22236 CC/C5W33 Bearing

22236 CC/C5W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 278089 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 2600 rpm, it delivers reliable performance in high-speed environments.

22236 CC/C5W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
The steel cage maintains roller alignment, reducing wear and extending the bearing’s service life.

Application

Industrial Uses of 22236 CC/C5W33 Bearing
22236 CC/C5W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The spherical roller construction also compensates for misalignment, ensuring smooth operation in rugged conditions.

In wind turbines, 22236 CC/C5W33 Bearing supports the main shaft, thanks to its high dynamic load capacity and resistance to extreme temperatures. The steel cage and chrome steel rollers provide long service life even in demanding environments.

For mining equipment, 22236 CC/C5W33 Bearing’s robust construction makes it ideal for conveyors and excavators, where reliability is key. The C5 radial clearance allows for thermal expansion, preventing premature wear during continuous operation.

Where Is 22236 CC/C5W33 Bearing Used?
You’ll often find 22236 CC/C5W33 Bearing in paper mills, where it supports large rollers under heavy loads and high speeds. Its open design simplifies lubrication, reducing downtime for maintenance.

In steel plants, 22236 CC/C5W33 Bearing handles the intense heat and heavy loads of rolling mills. The chrome steel material ensures durability, while the spherical rollers adapt to shaft deflections.

Built for Heavy-Duty Use: 22236 CC/C5W33 Bearing
22236 CC/C5W33 Bearing excels in construction equipment like cranes and bulldozers, where its combined load capacity is essential. The metric sizing ensures compatibility with global machinery standards.

For marine applications, 22236 CC/C5W33 Bearing’s resistance to corrosion and high loads makes it suitable for propeller shafts. The wide temperature range also ensures performance in varying climates.

Automotive vs Aerospace: Applications of 22236 CC/C5W33 Bearing
In automotive testing rigs, 22236 CC/C5W33 Bearing handles high-speed rotations and dynamic loads. Its precision engineering ensures accurate data collection for performance analysis.

For aerospace ground equipment, 22236 CC/C5W33 Bearing’s reliability supports heavy loads in aircraft tow tractors. The steel cage and rollers provide the necessary strength for frequent use.
