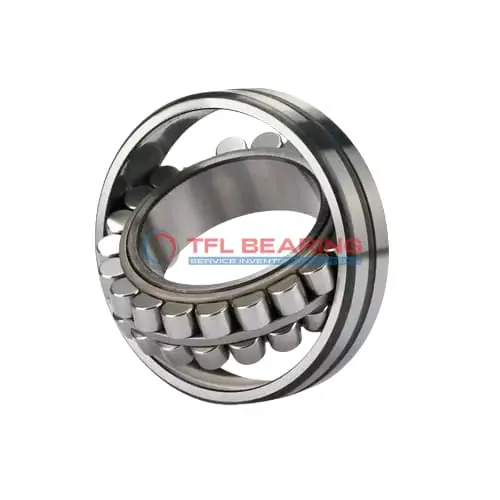

22230 CY W22 Double Row Spherical Roller Bearing

22230 CY W22 Double Row Spherical Roller Bearing

The 22230 CY W22 is a double-row spherical roller bearing with a 150mm bore and 270mm outer diameter, crafted from robust chrome steel. It manages combined loads up to 201878 lbf and operates smoothly at speeds up to 3000 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where high radial loads are present.

Weighing 18kg, it’s built to withstand demanding conditions while maintaining performance. Compliant with RoHS and REACH standards for safe and sustainable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22230 CY W22
  • Brand TFL
  • Interchangeable SKF
  • Size 150 x 270 x 73 mm
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 270 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 73 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 178 mm
  • Shoulder/Recess Dia Of Outer Ring 234 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 201878 lbf
  • Static Radial Load 242794 lbf
  • Max Speed 3000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 18 kg
  • Price （US$） US$217.62

Features

Performance Features of 22230 CY W22 Bearing

22230 CY W22 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 201878 lbf, making it suitable for heavy-duty applications.

The brass cage ensures proper roller alignment, reducing friction and enhancing durability.
With a maximum speed of 3000 rpm, it delivers reliable performance under high-stress conditions.

22230 CY W22 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its double-row spherical design accommodates misalignment, ensuring smooth operation in various environments.

Application

Industrial Uses of 22230 CY W22 Bearing
The 22230 CY W22 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads.
Its brass cage and chrome steel rollers ensure durability in harsh environments, making it a reliable choice for mining and construction equipment.

Where Is 22230 CY W22 Bearing Used?
You’ll often find the 22230 CY W22 Bearing in wind turbines, where its ability to handle combined loads and high speeds is essential.
The open design allows for easy lubrication, which is crucial for maintaining performance in remote or hard-to-access locations.

Built for Heavy-Duty Use: 22230 CY W22 Bearing
In steel mills, the 22230 CY W22 Bearing supports rolling mills, enduring extreme temperatures and heavy loads.
Its metric sizing and interchangeable design with SKF make it a versatile option for global industrial applications.

Automotive vs Aerospace: Applications of 22230 CY W22 Bearing
While the 22230 CY W22 Bearing isn’t typical in aerospace, it’s a staple in heavy-duty trucks and buses for axle support.
The high static radial load capacity ensures longevity even in demanding transport conditions.

Practical Applications of 22230 CY W22 Bearing
For paper mills, the 22230 CY W22 Bearing is ideal for drying cylinders, where its heat resistance and load capacity are key.
The spherical roller design compensates for shaft deflection, reducing wear and maintenance downtime.
