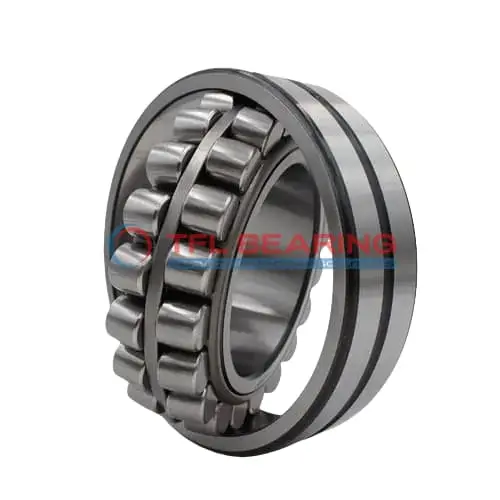

22226 E/C4 MOD Double Row Spherical Roller Bearing

22226 E/C4 MOD Double Row Spherical Roller Bearing

The 22226 E/C4 MOD is a double-row spherical roller bearing with a 130mm bore and 230mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 170405 lbf and operates smoothly at speeds up to 3600 RPM.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy loads. The bearing performs well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for industrial machinery like pumps or gearboxes where high radial loads are common.

Weighing 11.5kg, it’s built to last with a C4 radial clearance for added flexibility. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22226 E/C4 MOD
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 230 x 64 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 64 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 201 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 170405 lbf
  • Static Radial Load 209072 lbf
  • Max Speed 3600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 11.5 kg

Features

Performance Features of 22226 E/C4 MOD Bearing

22226 E/C4 MOD Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 170405 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design accommodates misalignment, enhancing performance in challenging conditions.
With a maximum speed of 3600 rpm, it delivers both durability and efficiency.

22226 E/C4 MOD Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The C4 radial clearance provides flexibility, reducing stress during thermal expansion.

Its steel cage maintains roller alignment, minimising wear and extending service life.
The open design simplifies lubrication, ensuring consistent performance over time.

Application

Industrial Uses of 22226 E/C4 MOD Bearing
22226 E/C4 MOD Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads effortlessly.
The spherical roller construction allows for slight misalignment, making it ideal for rugged industrial environments.

Why Is 22226 E/C4 MOD Bearing Essential in Machinery?
In mining equipment, 22226 E/C4 MOD Bearing ensures reliable performance under extreme conditions, thanks to its chrome steel rollers and robust cage.
Its C4 radial clearance accommodates thermal expansion, perfect for high-temperature applications like kilns and dryers.

Built for Heavy-Duty Use: 22226 E/C4 MOD Bearing
For wind turbines, 22226 E/C4 MOD Bearing supports the main shaft, enduring variable loads and harsh weather with ease.
The lubrication groove design simplifies maintenance, extending service life in remote installations.

Automotive vs Aerospace: Applications of 22226 E/C4 MOD Bearing
In large trucks, 22226 E/C4 MOD Bearing works well in wheel hubs, balancing heavy loads and long-distance durability.
While not typical in aerospace, its precision makes it suitable for ground support equipment like cargo loaders.

Perfect Fit for Automation: 22226 E/C4 MOD Bearing
In robotic assembly lines, 22226 E/C4 MOD Bearing handles repetitive motion with minimal wear, ensuring consistent operation.
The steel cage and high-speed capability make it a dependable choice for automated conveyor systems.
