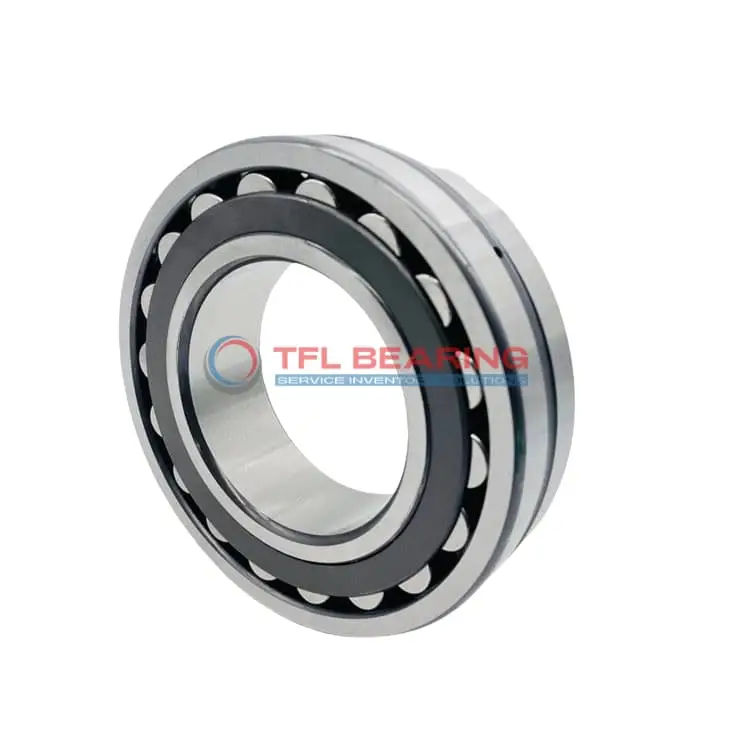

22217 KM C3 Double Row Spherical Roller Bearing

22217 KM C3 Double Row Spherical Roller Bearing

The 22217 KM C3 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 65419 lbf and operates smoothly at speeds up to 5600 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability under heavy loads. The open seal type allows for easy lubrication, with a 3mm hole for convenient greasing.

This bearing suits high-temperature environments, working reliably from -30°C to 200°C. Its C3 radial clearance offers flexibility in applications with thermal expansion.

Ideal for industrial machinery like gearboxes or conveyors, it’s interchangeable with SKF models. Weighing 2.7kg, it balances strength and manageability for demanding settings. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 KM C3
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance +0.035mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

Performance Features of 22217 KM C3 Bearing

22217 KM C3 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, making it suitable for heavy-duty applications.

The double-row spherical roller design ensures smooth operation even under misalignment conditions.
With a maximum speed of 5600 rpm, it delivers reliable performance in various industrial settings.

22217 KM C3 Bearing operates in temperatures from -30° to 200°C, adapting to harsh environments.
The C3 radial clearance provides flexibility, reducing stress and extending service life.

Its tapered bore design simplifies installation, ensuring a secure fit on shafts.
The steel cage maintains roller alignment, enhancing durability and reducing maintenance needs.

Application

Industrial Uses of 22217 KM C3 Bearing
The 22217 KM C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. Its tapered bore ensures a secure fit, reducing slippage during high-stress operations.

Where Is 22217 KM C3 Bearing Used?
You’ll often find the 22217 KM C3 Bearing in mining equipment, where its robust construction withstands harsh conditions. The spherical roller design also makes it suitable for misalignment compensation in conveyor systems.

Built for Heavy-Duty Use: 22217 KM C3 Bearing
This bearing excels in paper mill machinery, thanks to its high dynamic load capacity. The open design allows for easy lubrication, extending its lifespan in demanding environments.

Automotive vs Aerospace: Applications of 22217 KM C3 Bearing
In automotive applications, the 22217 KM C3 Bearing supports gearboxes and drivetrains, while in aerospace, it’s used in auxiliary systems where reliability is key. Its wide temperature range ensures performance in varied conditions.

Practical Applications of 22217 KM C3 Bearing
For wind turbines, the 22217 KM C3 Bearing’s ability to handle misalignment and heavy loads makes it a reliable choice. The C3 clearance also accommodates thermal expansion during prolonged use.
