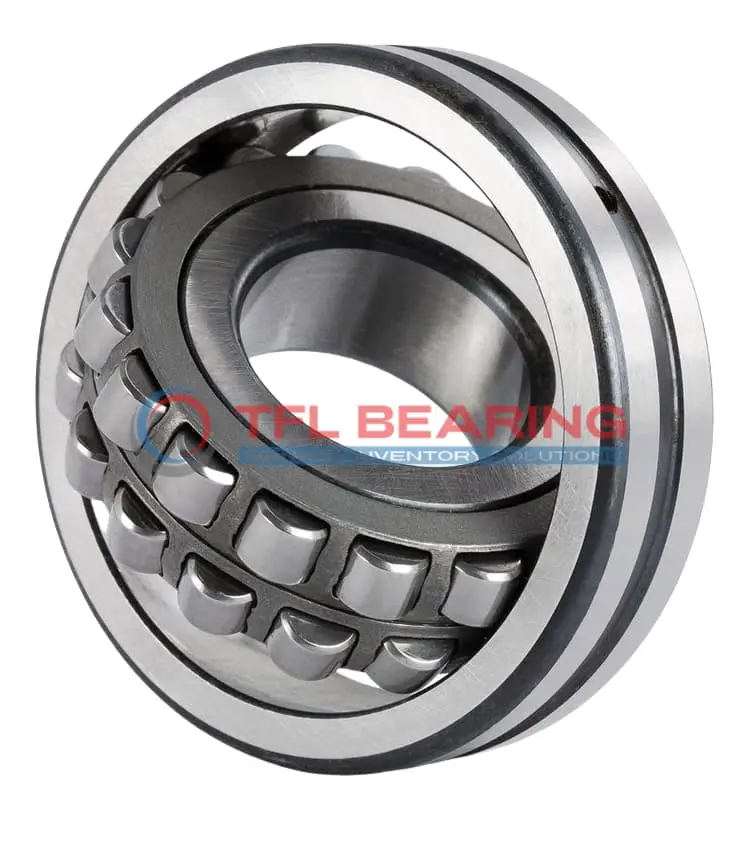

22217 CC/W33 CC C3 W33 Double Row Spherical Roller Bearing

22217 CC/W33 CC C3 W33 Double Row Spherical Roller Bearing

The 22217 CC/W33 CC C3 W33 is a double-row spherical roller bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 65419 lbf and operates smoothly at speeds up to 5600 RPM.

Its open design and lubrication groove make maintenance straightforward, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, offering a dependable replacement option. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are present.

Weighing 2.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22217 CC/W33 CC C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 85 x 150 x 36 mm
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 36 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 101 mm
  • Shoulder/Recess Dia Of Outer Ring 133 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 65419 lbf
  • Static Radial Load 73063 lbf
  • Max Speed 5600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.7 kg
  • Price （US$） 59.58

Features

Performance Features of 22217 CC/W33 CC C3 W33 Bearing

22217 CC/W33 CC C3 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 65419 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 5,600 rpm, it maintains performance under demanding conditions.

22217 CC/W33 CC C3 W33 Bearing operates in temperatures from -30° to 200°C, suitable for varied environments.
The lubrication groove and holes ensure consistent lubrication, extending service life.

Application

Industrial Uses of 22217 CC/W33 CC C3 W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction also compensates for minor misalignments, reducing wear.

Where Is 22217 CC/W33 CC C3 W33 Bearing Used?
You’ll find it in industrial gearboxes and mining equipment, where its high dynamic load capacity ensures reliable performance. The C3 radial clearance allows for thermal expansion in high-speed applications.

Built for Heavy-Duty Use: 22217 CC/W33 CC C3 W33 Bearing
Ideal for paper mills and conveyor systems, this bearing’s steel cage and chrome steel rollers withstand harsh conditions. The lubrication groove and holes make maintenance straightforward, even in dusty environments.

Automotive vs Aerospace: Applications of 22217 CC/W33 CC C3 W33 Bearing
In automotive applications, it supports heavy axles and drivetrains, while in aerospace, its temperature range suits auxiliary systems. The metric sizing ensures compatibility across global machinery standards.

Key Fields for 22217 CC/W33 CC C3 W33 Bearing
Wind turbines benefit from its ability to handle fluctuating loads and misalignments. The open design allows for easy relubrication, extending service life in remote installations.
