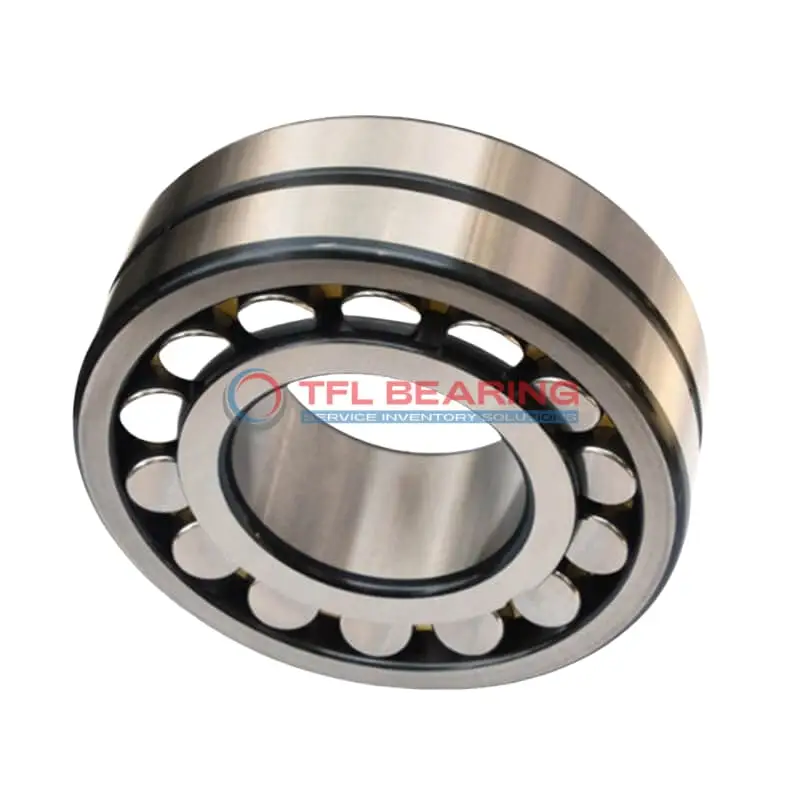

22216 CJ W33 Double Row Spherical Roller Bearing

22216 CJ W33 Double Row Spherical Roller Bearing

The 22216 CJ W33 is a double-row spherical roller bearing with an 80mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 54629 lbf and operates smoothly at speeds up to 6000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability under heavy loads. The open construction with lubrication grooves makes maintenance straightforward.

This bearing suits high-temperature environments, working reliably from -30°C to 200°C. It’s interchangeable with SKF models, ideal for industrial machinery like gearboxes or conveyors.

Weighing 2.1kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a dependable choice for demanding applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22216 CJ W33
  • Brand TFL
  • Interchangeable SKF
  • Size 80 x 140 x 33 mm
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 33 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 94.7 mm
  • Shoulder/Recess Dia Of Outer Ring 124 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.2 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 54629 lbf
  • Static Radial Load 60698 lbf
  • Max Speed 6000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 2.1 kg
  • Price （US$） 55.08

Features

Performance Features of 22216 CJ W33 Bearing

22216 CJ W33 Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 54629 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances its durability and extends its service life even under challenging conditions.

With a maximum speed of 6000 rpm, 22216 CJ W33 Bearing balances high performance and efficiency.
The steel cage maintains roller alignment, contributing to smooth and quiet operation.

22216 CJ W33 Bearing operates effectively in temperatures ranging from -30° to 200°C.
Its open design and lubrication requirements ensure optimal performance in various industrial environments.

Application

Industrial Uses of 22216 CJ W33 Bearing
22216 CJ W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads effectively. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 22216 CJ W33 Bearing Used?
In mining equipment, 22216 CJ W33 Bearing supports high loads and harsh conditions, thanks to its robust chrome steel construction. The lubrication groove and holes further enhance its performance in dusty environments.

Built for Heavy-Duty Use: 22216 CJ W33 Bearing
For conveyor systems, 22216 CJ W33 Bearing offers reliable performance with its high dynamic load capacity. The steel cage ensures durability, making it suitable for continuous operation in industrial settings.

Automotive vs Aerospace: Applications of 22216 CJ W33 Bearing
In automotive applications, 22216 CJ W33 Bearing is found in gearboxes and drivetrains, where its combined load capacity is essential. While not typically used in aerospace, its precision and reliability make it a solid choice for ground-based machinery.

Key Fields for 22216 CJ W33 Bearing
22216 CJ W33 Bearing excels in wind turbines, where its ability to handle misalignment and high loads is crucial. The wide temperature range also ensures performance in varying weather conditions.
