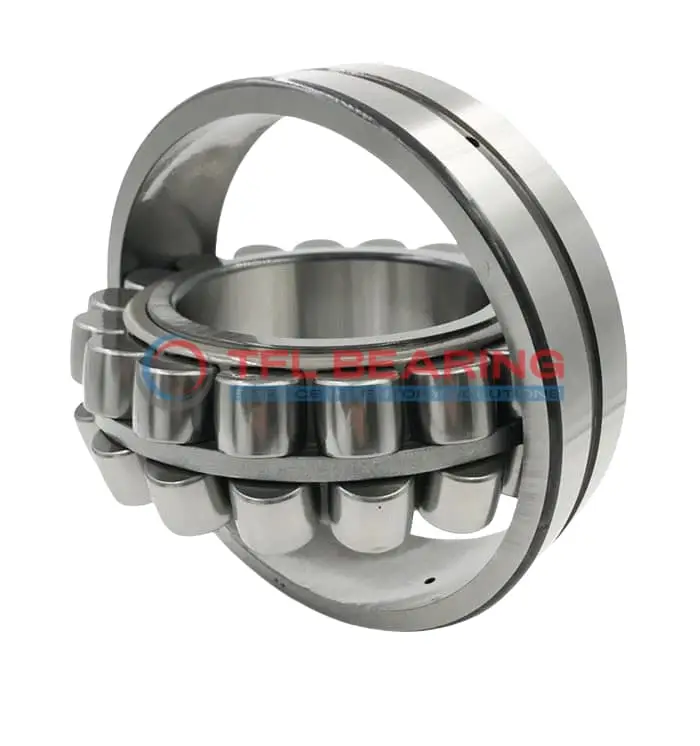

22215 E/C4 Double Row Spherical Roller Bearing

22215 E/C4 Double Row Spherical Roller Bearing

The 22215 E/C4 is a double-row spherical roller bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 48784 lbf and operates smoothly at speeds up to 6300 RPM.

Its open design and C4 radial clearance allow for thermal expansion, while the steel cage ensures durability. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where combined loads are common.

Weighing 1.7kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22215 E/C4
  • Brand TFL
  • Interchangeable SKF
  • Size 75 x 130 x 31 mm
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 87.8 mm
  • Shoulder/Recess Dia Of Outer Ring 115 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 48784 lbf
  • Static Radial Load 53954 lbf
  • Max Speed 6300 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C4
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.7 kg
  • Price （US$） 56.43

Features

Performance Features of 22215 E/C4 Bearing

22215 E/C4 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 48784 lbf, ensuring reliable operation under heavy stress.

The double-row spherical roller design allows for smooth performance even with misalignment.
This makes 22215 E/C4 Bearing suitable for applications where flexibility is needed.

With a maximum speed of 6300 rpm, it balances durability and efficiency in demanding conditions.
The C4 radial clearance ensures optimal performance across a wide temperature range.

22215 E/C4 Bearing’s steel cage keeps the rollers aligned, reducing wear and extending service life.
Its open design simplifies lubrication, making maintenance straightforward.

Application

Industrial Uses of 22215 E/C4 Bearing
The 22215 E/C4 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row spherical design handles misalignment and heavy radial loads. Its chrome steel construction ensures durability in harsh industrial environments.

Where Is 22215 E/C4 Bearing Used?
You’ll often find 22215 E/C4 Bearing in mining equipment, where its high dynamic radial load capacity supports demanding operations. The open seal design allows for easy lubrication, extending its service life.

Built for Heavy-Duty Use: 22215 E/C4 Bearing
This bearing excels in construction equipment like cranes and excavators, thanks to its robust steel cage and spherical roller design. It handles combined loads effortlessly, making it a reliable choice for rugged applications.

Automotive vs Aerospace: Applications of 22215 E/C4 Bearing
In automotive systems, 22215 E/C4 Bearing supports gearboxes and drivetrains, while in aerospace, it’s used in auxiliary systems requiring high-speed performance. Its C4 clearance ensures smooth operation under varying temperatures.

Essential Roles of 22215 E/C4 Bearing
For conveyor systems and material handling equipment, 22215 E/C4 Bearing provides reliable performance under continuous load. Its metric sizing and compatibility with SKF models make it a versatile option for global applications.
