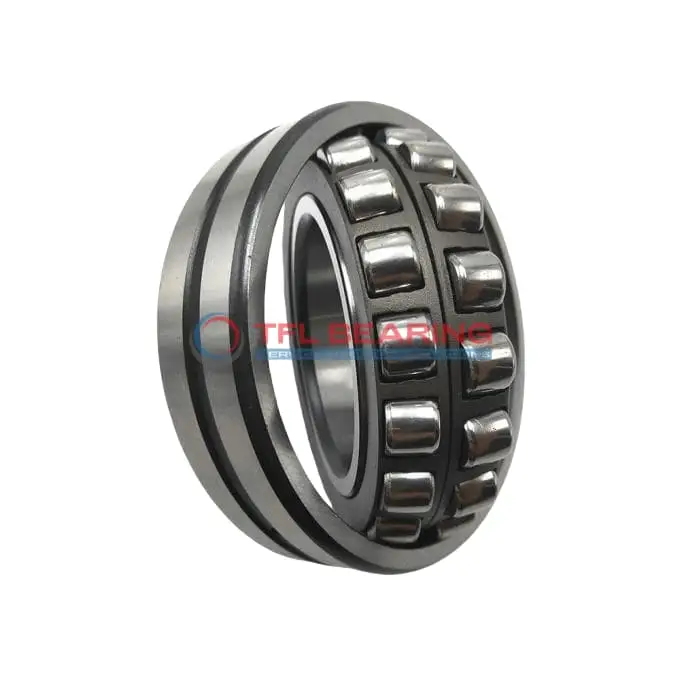

22213 CV W33 Double Row Spherical Roller Bearing

22213 CV W33 Double Row Spherical Roller Bearing

The 22213 CV W33 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability. The open construction allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, where reliability is key. It performs well in temperatures from -30°C to 200°C.

Weighing 1.55kg, it’s built for demanding environments. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CV W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 36.54

Features

How Does 22213 CV W33 Bearing Handle Combined Loads?

22213 CV W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable performance in heavy-duty applications.
The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 7000 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of 22213 CV W33 Bearing
22213 CV W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction also helps accommodate misalignment, reducing wear in demanding conditions.

Where Is 22213 CV W33 Bearing Used?
You’ll often find 22213 CV W33 Bearing in mining equipment, where its high dynamic load capacity ensures reliable performance under constant stress. The lubrication groove and hole design make maintenance straightforward, even in harsh environments.

Built for Heavy-Duty Use: 22213 CV W33 Bearing
22213 CV W33 Bearing excels in construction equipment like cranes and excavators, thanks to its robust chrome steel rollers and steel cage. Its wide temperature range (-30° to 200°C) also makes it suitable for outdoor applications in varying climates.

Automotive vs Aerospace: Applications of 22213 CV W33 Bearing
In automotive systems, 22213 CV W33 Bearing supports components like drivetrains, where combined loads are common. While not typically used in aerospace, its precision and durability make it a solid choice for industrial vehicles and heavy transport.

Perfect Fit for Automation: 22213 CV W33 Bearing
22213 CV W33 Bearing works well in automated production lines, particularly in conveyor systems requiring smooth, consistent movement. The CN radial clearance ensures optimal performance without excessive vibration or noise.
