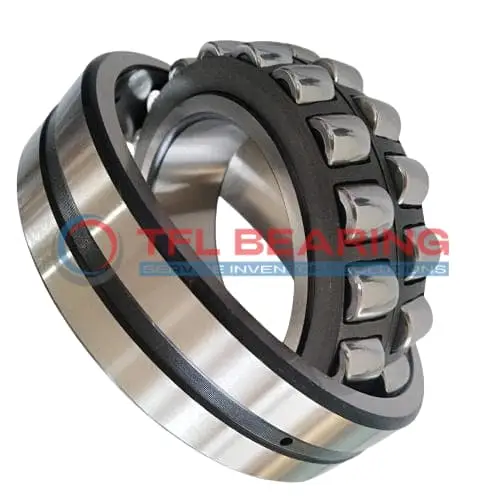

22213 CC/W33 Double Row Spherical Roller Bearing

22213 CC/W33 Double Row Spherical Roller Bearing

The 22213 CC/W33 is a double-row spherical roller bearing with a 65mm bore and 120mm outer diameter, crafted from robust chrome steel. It handles combined loads up to 44512 lbf and operates smoothly at speeds up to 7000 RPM.

Its spherical roller design accommodates misalignment, while the steel cage ensures durability. The open construction allows for easy lubrication, with grooves and holes for efficient maintenance.

This bearing suits high-load applications like industrial gearboxes or heavy machinery, where reliability is key. It performs well in temperatures ranging from -30°C to 200°C.

Weighing 1.55kg, it’s a sturdy choice for demanding environments. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22213 CC/W33
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 120 x 31 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 31 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 80.1 mm
  • Shoulder/Recess Dia Of Outer Ring 106 mm
  • Width Of Lubrication Groove 6 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.5 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44512 lbf
  • Static Radial Load 48559 lbf
  • Max Speed 7000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 1.55 kg
  • Price （US$） 37.44

Features

Performance Features of 22213 CC/W33 Bearing

22213 CC/W33 Bearing is built with chrome steel rings and rollers, offering excellent resistance to combined loads.
Its dynamic radial load capacity reaches 44512 lbf, ensuring reliable operation in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, maintaining performance under varying conditions.
With a maximum speed of 7000 rpm, it delivers both durability and efficiency.

22213 CC/W33 Bearing operates in temperatures from -30° to 200°C, making it suitable for diverse environments.
The steel cage ensures proper roller alignment, reducing wear and extending service life.

Lubrication grooves and holes in 22213 CC/W33 Bearing facilitate easy maintenance and consistent performance.
Its standard radial clearance (CN) ensures smooth operation across various applications.

Application

Industrial Uses of 22213 CC/W33 Bearing
The 22213 CC/W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its spherical roller construction allows for slight misalignment, making it suitable for rugged industrial environments.

Where Is 22213 CC/W33 Bearing Used?
You’ll often find the 22213 CC/W33 Bearing in mining equipment, where its high dynamic load capacity ensures reliable performance under tough conditions.
The lubrication groove and holes make maintenance straightforward, even in dusty or high-temperature settings.

Built for Heavy-Duty Use: 22213 CC/W33 Bearing
In construction machinery, the 22213 CC/W33 Bearing supports components like conveyor pulleys, thanks to its robust chrome steel construction.
The wide temperature range also makes it adaptable to both hot and cold working environments.

Automotive vs Aerospace: Applications of 22213 CC/W33 Bearing
While the 22213 CC/W33 Bearing isn’t typically used in aerospace, it’s a staple in heavy-duty trucks and industrial vehicles.
Its combined load handling and durability make it ideal for transmissions and differential systems.

Perfect Fit for Automation: 22213 CC/W33 Bearing
In automated production lines, the 22213 CC/W33 Bearing ensures smooth operation in robotic arms and assembly systems.
The steel cage and roller design provide long service life, reducing downtime for maintenance.
