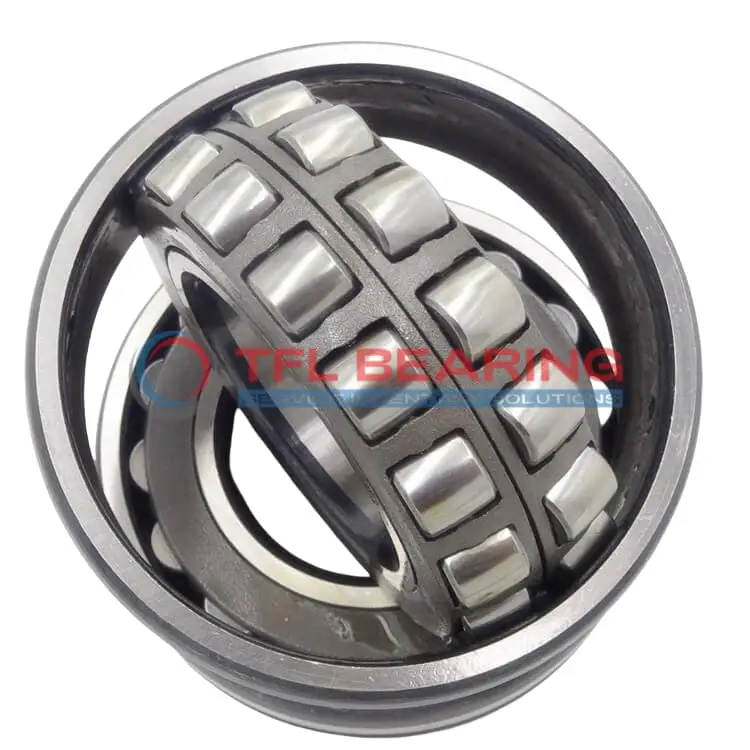

22210 CC C3 W33 Double Row Spherical Roller Bearing

22210 CC C3 W33 Double Row Spherical Roller Bearing

The 22210 CC C3 W33 is a double-row spherical roller bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 24055 lbf and reaches speeds of 9500 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and lubrication groove make maintenance straightforward.

This bearing suits high-load applications like heavy machinery or industrial gearboxes. It operates in temperatures from -30°C to 200°C and complies with RoHS and REACH standards.

Weighing 0.62kg, it’s a robust choice for demanding environments. Interchangeable with SKF bearings, it’s a reliable option for replacements or upgrades.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22210 CC C3 W33
  • Brand TFL
  • Interchangeable SKF
  • Size 50 x 90 x 23 mm
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 60 mm
  • Shoulder/Recess Dia Of Outer Ring 79 mm
  • Width Of Lubrication Groove 5.5 mm
  • Diameter Of Lubrication Hole 3 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 24055 lbf
  • Static Radial Load 24279 lbf
  • Max Speed 9500 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.62 kg
  • Price （US$） 27.72

Features

Performance Features of 22210 CC C3 W33 Bearing

22210 CC C3 W33 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 24055 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
This feature enhances durability and extends the service life even under challenging conditions.

With a maximum speed of 9500 rpm, 22210 CC C3 W33 Bearing balances high performance and efficiency.
The C3 radial clearance provides optimal operation in varying temperature ranges from -30° to 200°C.

The steel cage maintains roller alignment, ensuring smooth operation and reduced wear.
Lubrication grooves and holes facilitate easy maintenance, keeping the bearing running efficiently.

Application

Industrial Uses of 22210 CC C3 W33 Bearing
This bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The spherical roller construction allows for slight misalignment, making it reliable in demanding environments.

Where Is 22210 CC C3 W33 Bearing Used?
You’ll find this bearing in wind turbines and mining equipment, where its high dynamic load capacity ensures long service life. The C3 radial clearance also helps accommodate thermal expansion in high-temperature applications.

Built for Heavy-Duty Use: 22210 CC C3 W33 Bearing
It’s a go-to choice for conveyor systems and gearboxes, thanks to its robust chrome steel construction. The lubrication groove and holes make maintenance straightforward, even in continuous operation.

Automotive vs Aerospace: Applications of 22210 CC C3 W33 Bearing
In automotive applications, it supports drivetrain components, while in aerospace, it’s used in auxiliary systems. The wide temperature range (-30° to 200°C) ensures performance in varied conditions.

Essential Roles of 22210 CC C3 W33 Bearing
This bearing excels in paper mill machinery, where its durability and load capacity are critical. The steel cage adds stability, reducing wear during high-speed rotations.
