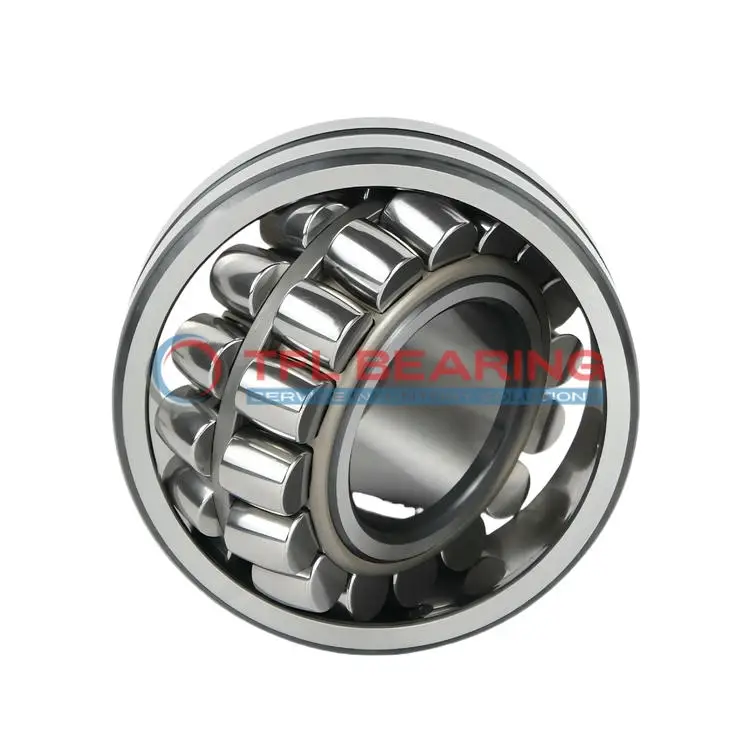

22206 E/C3W64 Double Row Spherical Roller Bearing

22206 E/C3W64 Double Row Spherical Roller Bearing

The 22206 E/C3W64 is a double-row spherical roller bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 1486 lbf and reaches speeds of 14000 RPM.

Its spherical roller design allows for slight misalignment, while the steel cage ensures durability. The open construction and C3 radial clearance make it suitable for high-speed applications.

This bearing is interchangeable with SKF models, offering a reliable replacement option. It performs well in temperatures from -30°C to 200°C, ideal for heavy machinery or industrial equipment.

Weighing 0.28kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22206 E/C3W64
  • Brand TFL
  • Interchangeable SKF
  • Size 30 x 62 x 20 mm
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 20 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 37.6 mm
  • Shoulder/Recess Dia Of Outer Ring 53 mm
  • Width Of Lubrication Groove 3.7 mm
  • Diameter Of Lubrication Hole 2 mm
  • Chamfer Dimension min.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 1486 lbf
  • Static Radial Load 13489 lbf
  • Max Speed 14000 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.28 kg
  • Price （US$） 36.8

Features

Performance Features of 22206 E/C3W64 Bearing

22206 E/C3W64 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 1486 lbf, ensuring reliable performance in various applications.
The double-row spherical design allows for slight misalignment, reducing stress on the bearing.

How Is 22206 E/C3W64 Bearing Engineered for Reliability?

22206 E/C3W64 Bearing features a steel cage that maintains roller alignment, enhancing durability.
With a maximum speed of 14,000 rpm, it delivers smooth operation under high-speed conditions.
The C3 radial clearance ensures optimal performance across a wide temperature range.

Designed for Durability: 22206 E/C3W64 Bearing

22206 E/C3W64 Bearing’s chrome steel construction resists wear, extending its service life.
The lubrication groove and holes ensure consistent grease distribution, reducing maintenance needs.
It operates efficiently in temperatures ranging from -30° to 200°C, suitable for demanding environments.

Steel vs Ceramic Bearings: Strengths of 22206 E/C3W64 Bearing

22206 E/C3W64 Bearing’s chrome steel rollers provide excellent load-carrying capacity.
The open design allows for easy lubrication, ensuring long-term reliability.
Its spherical roller design accommodates misalignment, making it versatile for various applications.

Application

Industrial Uses of 22206 E/C3W64 Bearing
22206 E/C3W64 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads effortlessly. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

In automotive applications, 22206 E/C3W64 Bearing fits well in truck wheel hubs and drivetrains, thanks to its high radial load capacity. The C3 clearance allows for thermal expansion, making it reliable under varying temperatures.

For automation systems, 22206 E/C3W64 Bearing supports robotic arms and conveyor belts, where precision and durability are key. Its open design simplifies lubrication, reducing downtime in high-speed operations.

Where Is 22206 E/C3W64 Bearing Used?
You’ll often find 22206 E/C3W64 Bearing in industrial fans and pumps, where its spherical rollers manage both radial and axial loads. The chrome steel construction ensures long service life even in demanding conditions.

In construction equipment, 22206 E/C3W64 Bearing is a go-to for cranes and excavators, handling heavy loads with ease. The metric sizing makes it compatible with a wide range of machinery, simplifying replacements.

Built for Heavy-Duty Use: 22206 E/C3W64 Bearing
22206 E/C3W64 Bearing excels in mining equipment, where its robust design withstands harsh environments. The steel cage adds durability, making it a reliable choice for continuous operation.

In agricultural machinery, 22206 E/C3W64 Bearing supports tractors and harvesters, ensuring smooth performance under heavy loads. The C3 clearance also accommodates thermal expansion, preventing premature wear.
