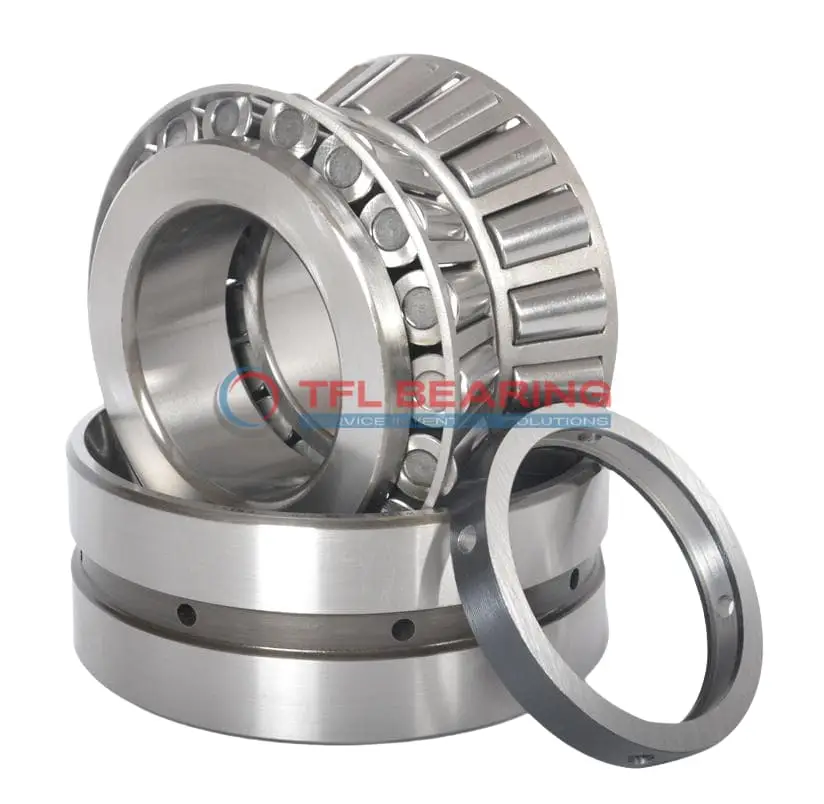

22168-22325D TDO (Two-Row Double-Outer Race) (Imperial)

22168-22325D TDO (Two-Row Double-Outer Race) (Imperial)

The 22168-22325D is a two-row tapered roller bearing with a 1.6875″ bore and 3.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 30300 lbf and is designed for long-lasting performance in demanding conditions.

Its double-row construction provides excellent radial and thrust capacity, with dynamic ratings of 7860 lbf (radial) and 3320 lbf (thrust) per 90 million revolutions. The open design allows for easy lubrication and maintenance.

This bearing features standard cups and a steel cage, ensuring reliable operation in temperatures from -30°C to 110°C. The ABEC-1 rating offers good precision for industrial applications.

Ideal for heavy machinery, gearboxes, or industrial equipment where combined loads are present. Compliant with RoHS and REACH standards, it weighs 2.19 lb for its robust size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22168-22325D
  • Brand TFL
  • Size 1.6875" x 3.25" x 0.781"
  • Bore Dia 1.6875"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 3.25"
  • Outer Dia Tolerance +0.001" to 0
  • Double Cup Width 1.375"
  • Double Cup Width Tolerance +0.003" to -0.01
  • Cone Width 0.781"
  • Cone Width Tolerance +0.002" to -0.01
  • Bearing Width Across Cups 1.7499"
  • Bearing Width Across Cups Tolerance +0.008" to 0
  • Cup Backface ToClear Radius 0.03"
  • Cone Backface Backing Diameter 2.05"
  • Cup Frontface Backing Diameter 3.03"
  • Cage Cone Backface Clearance 0.02"
  • Dynamic Radial Load 30300 lbf
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 22168
  • Cup Part Number 22325D
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Cups Type Standard
  • Series 22000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Rating(One Row 90 Million Revolutions) 4510 lbf
  • Dynamic Thrust Rating(90 Million Revolutions) 3320 lbf
  • Dynamic Radial Rating(Two Row 90 Million Revolutions) 7860 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.19 lb

Features

Performance Features of 22168-22325D Bearing

22168-22325D Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 30,300 lbf, ensuring reliable performance in heavy-duty applications.

The double-row tapered roller design distributes loads evenly, enhancing durability and reducing wear.
With a standard radial clearance, it provides smooth operation across various industrial uses.

22168-22325D Bearing operates efficiently within a temperature range of -30° to 110°C.
Its steel cage maintains roller alignment, contributing to extended service life.

The open seal design allows for easy lubrication, ensuring consistent performance.
This bearing is ideal for applications requiring high load capacity and reliability.

Application

Industrial Uses of 22168-22325D Bearing
The 22168-22325D Bearing is commonly used in heavy machinery, such as construction equipment and mining vehicles, where its double-row design handles combined radial and thrust loads efficiently. Its chrome steel construction ensures durability in tough working conditions.

In automotive applications, 22168-22325D Bearing supports wheel hubs and drivetrain components, providing reliable performance under varying loads. The imperial sizing makes it a good fit for North American vehicle models.

For industrial automation, 22168-22325D Bearing’s open design allows for easy lubrication, which is essential for maintaining smooth operation in conveyor systems. The tapered roller design also helps distribute loads evenly.

Where Is 22168-22325D Bearing Used?
You’ll often find 22168-22325D Bearing in agricultural machinery, where its ability to handle heavy loads and harsh environments is a real advantage. The steel cage adds extra strength, making it suitable for long-term use.

In material handling systems, 22168-22325D Bearing ensures smooth rotation in pulley assemblies and gearboxes. Its standard radial clearance options provide flexibility for different operational needs.

Built for Heavy-Duty Use: 22168-22325D Bearing
The 22168-22325D Bearing is ideal for applications like railroad axles, where its double-row tapered rollers manage high radial and thrust loads. The chrome steel rollers enhance wear resistance.

In wind turbine systems, 22168-22325D Bearing’s robust design helps withstand variable wind loads. The open seal type allows for easy maintenance, which is crucial in remote installations.

Automotive vs Aerospace: Applications of 22168-22325D Bearing
In automotive settings, 22168-22325D Bearing is often used in differential systems, where its combined load capacity improves performance. The ABEC-1 rating ensures reliable precision.

For aerospace ground equipment, 22168-22325D Bearing provides stability in landing gear testing rigs. Its temperature range of -30° to 110°C ensures consistent operation in various climates.
