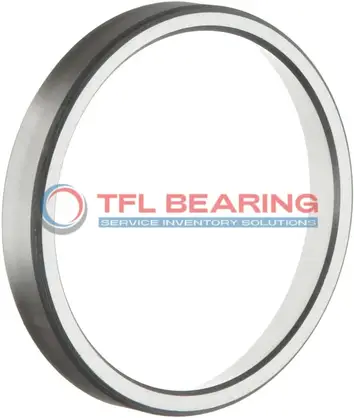

19262 Single Cups (Imperial)

19262 Single Cups (Imperial)

The 19262 is a single cup tapered roller bearing with a 2.625″ outer diameter and 0.4688″ width, made from sturdy chrome steel. It fits well with standard tapered rollers and handles a temperature range of -30°C to 110°C.

Its precise outer diameter tolerance ensures a snug fit, while the chrome steel construction offers reliable durability. The cup is part of the 19000 series, compatible with several Timken models.

This cup is designed for easy installation and interchangeability, making it a practical choice for replacements. Ideal for industrial machinery or automotive applications where tapered roller bearings are needed.

Compliant with RoHS and REACH standards, it’s a safe and dependable option for various engineering needs. The ABEC-1 rating provides balanced performance for general-purpose use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 19262
  • Brand TFL
  • Interchangeable Timken
  • Size 2.40" x 2.625" x 0.4688"
  • Outer Dia 2.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.4688"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 2.56"
  • Cup Backface Backing Diameter 2.40"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 19138-19262 , 19138X-19262 , 19143-19262 , 19149X-19262 , 19150-19262 , 19153X-19262
  • Cups Type Standard
  • Series 19000
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

How Is 19262 Bearing Engineered for Reliability?

19262 Bearing is crafted from chrome steel, offering durability and resistance to wear in demanding conditions.
Its tapered roller design ensures efficient load distribution, enhancing performance under stress.
With an outer diameter of 2.625″ and a cup width of 0.4688″, it fits precisely in compatible assemblies.
The bearing operates smoothly within a temperature range of -30° to 110°C, making it versatile for various environments.

Application

Industrial Uses of 19262 Bearing
19262 Bearing is commonly used in heavy machinery, such as construction equipment and agricultural vehicles, where its tapered design handles radial and axial loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 19262 Bearing Used?
You’ll often find 19262 Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under varying loads. Its inch sizing makes it a popular choice for North American machinery.

Built for Heavy-Duty Use: 19262 Bearing
19262 Bearing excels in industrial gearboxes and conveyor systems, where its tapered rollers provide smooth operation. The standard cup design simplifies installation and maintenance in demanding environments.

Automotive vs Aerospace: Applications of 19262 Bearing
In automotive settings, 19262 Bearing supports wheel assemblies and transmissions, while its precision makes it suitable for aerospace landing gear components. The ABEC-1 rating ensures consistent performance across different industries.

Perfect Fit for Automation: 19262 Bearing
19262 Bearing is ideal for automated production lines and robotics, where its tapered rollers ensure precise movement. The chrome steel rings offer long-lasting performance even in high-speed applications.
