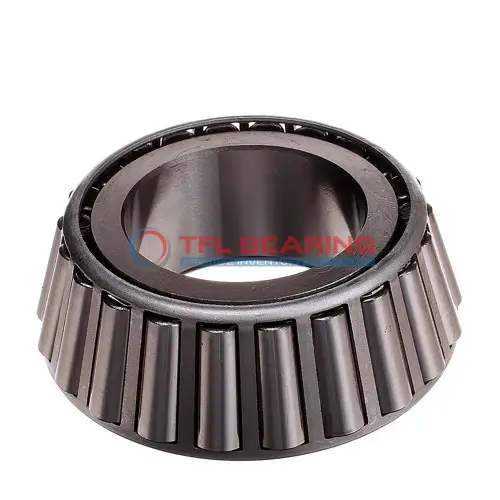

14116W Single Cones (Imperial)

The 14116W is a single-row tapered roller bearing with a 1.19″ bore, designed for combined loads. Made from durable chrome steel, it handles dynamic radial loads up to 12300 lbf and operates in temperatures from -30°C to 110°C.

Its open design allows easy maintenance, while the steel cage ensures smooth rotation. The bearing is compatible with Timken models, making it a versatile replacement option.

With standard radial clearance and ABEC-1 precision, it suits various industrial applications. Ideal for machinery requiring reliable performance under combined radial and thrust loads.

Compliant with RoHS and REACH standards, it offers a balance of strength and durability in a compact design.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 14116W
Brand TFL
Interchangeable Brand Timken
System of Measurement Inch
Type Cones
Bearing Part Number 14116W-14272 , 14116W-14273 , 14116W-14274 , 14116W-14274A , 14116W-14276 , 14116W-14277 , 14116W-14282 , 14116W-14283 , 14116W-14284 , 14116W-14299
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Series 14000
Bore Dia 1.19"
Bore Dia Tolerance +0.005" to 0
Cone Width 0.771"
Cone Width Tolerance +0.003" to -0.01
Cone Backface ToClear Radius 0.03"
Cone Frontface Backing Diameter 1.44"
Cone Backface Backing Diameter 1.46"
Cage Cone Frontface Clearance 0.07"
Cage Cone Backface Clearance 0.02"
Effective Center Location -0.17"
Ring Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 12300 lbf
Static Radial Load 13900 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 3180 lbf
Dynamic Radial Rating(Two Row 1 Million Revolutions)(C1) 21400 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2080 lbf
Dynamic Radial Rating(Two Row 90 Million Revolutions)(C90) 5540 lbf
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant

Features

Why Choose 14116W Bearing for Precision Tasks?

14116W Bearing is crafted from chrome steel, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 12,300 lbf, ensuring reliable performance in various applications.

The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in diverse conditions.

14116W Bearing’s tapered roller design ensures smooth operation and easy maintenance.
Its standard radial clearance options provide flexibility for different precision needs.

Application

Industrial Uses of 14116W Bearing
14116W Bearing is commonly used in heavy machinery, such as construction equipment and agricultural tools, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability even in demanding environments.

Where Is 14116W Bearing Used?
You’ll often find 14116W Bearing in automotive applications like wheel hubs and differential systems, thanks to its reliable performance under radial and thrust loads. Its inch sizing makes it a popular choice for older or custom-built vehicles.

Built for Heavy-Duty Use: 14116W Bearing
14116W Bearing excels in industrial gearboxes, where its steel cage and standard radial clearance provide smooth operation. The ABEC-1 rating ensures consistent performance for general machinery needs.

Automotive vs Industrial: Applications of 14116W Bearing
In automotive settings, 14116W Bearing supports wheel assemblies, while in industrial contexts, it’s ideal for conveyor systems. Its dynamic load capacity makes it versatile for both light and heavy-duty tasks.

What Makes 14116W Bearing a Preferred Choice?
14116W Bearing’s open design and chrome steel rings make it easy to maintain and long-lasting. It’s a go-to for machinery requiring reliable tapered roller bearings with standard clearance.
